Finishing the Test

Finishing the Test

When data analysis is finished, switch off the PDU and disconnect it from the vehicle. Store the PDU and cables in the carrying case and refit the case to the base station.

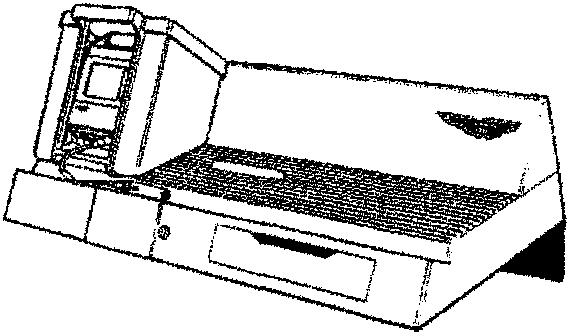

Connect the PDU to the base station using cable 0064. The base station will keep the PDU batteries fully charged at all times (Fig 15).

Care of the Equipment

CAUTION: With the exception of those parts referred to in the Servicing and Maintenance section, there are no user serviceable parts. All servicing must be carried out by GenRad Service Centres.

Switch off the power before cleaning the equipment. The Aston Martin Diagnostic System should only be cleaned using a non-abrasive, mild cleaning agent. Dust and other particles should be lightly brushed from the surface before cleaning. Cleaning agent should be applied to a soft lint-free cleaning cloth and never directly to the unit. Do not soak the cleaning cloth and take care not to allow cleaning fluid to enter connectors.

CAUTION: If any liquid is spilt on the equipment, switch off immediately. Ensure that the equipment has dried out completely before operating it again, especially in connectors where fluid can lodge.
