Warranty

Warranty

The Aston Martin Diagnostic System is covered by a one year warranty. Should any of the electrical components fail during the warranty period, contact your local GenRad Service Centre for a replacement part. Note that the warranty does not include physical damage.

Spare Parts

Refer to the Aston Martin Diagnostic System Users Guide for a full parts list. All spare parts should be obtained from your local GenRad Service Centre who can advise you on current prices.

servicing and Maintenance

CAUTION: With the exception of those parts listed in this section, there are no user serviceable parts within the system. All servicing must be carried out by GenRad Service Centres.

Battery Testing.

The NICAD batteries fitted in the PDU are designed to be rechargeable and should normally last through many recharge cycles. Battery life of three to five years can be expected. The capacity of new batteries improves after several charging cycles. After extended use, they may require renewing. The following procedure will assist you to determine when renewal is required. Do not use this procedure with new batteries or with a new PDU.

Testing Procedure

1. Remove all cables from the PDU.
2. Switch the PDU on and leave it until it switches off (the power on indicator will extinguish)
3. Connect the PDU to the base station for at least 12 hours charging.
4. Remove all cables from the PDU, switch on the PDU and start timing.
5. If the PDU switches off in less than 30 minutes, the batteries should be renewed.

Changing the Battery Pack

CAUTION: Always read and follow safety warnings and instructions printed on the equipment. The rechargeable NICAD batteries fitted to the PDU are of a special type. They must only be substituted by GenRad approved parts. Do not substitute the batteries with any other type. Always dispose of old batteries in compliance with local recycling regulations.

Battery Changing Procedure

A spare battery pack kit (0975) is available from your local GenRad Service Centre.

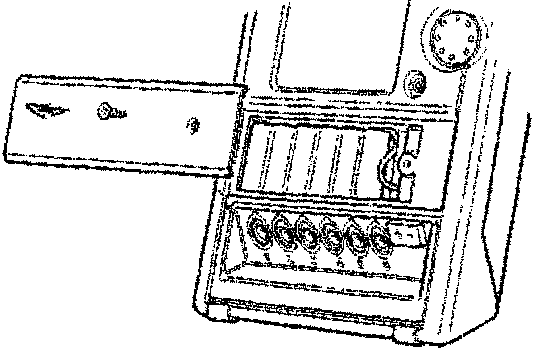

1. Figure 23. Battery cover screw

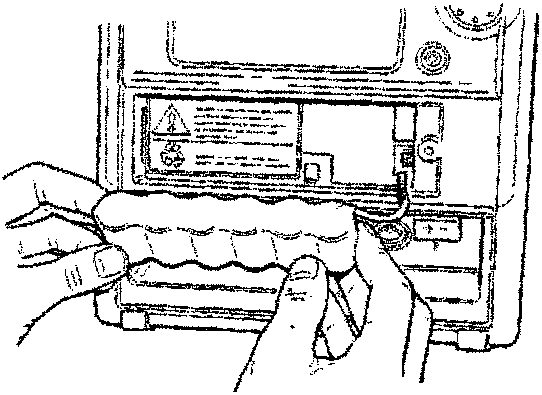

1. Figure 24. Battery pack
