Inlet Manifold

18. Install the accessory drive belt (Refer to ‘Drive Belt’, page 3-6-1)
19. Install the camshaft cover (Refer to ‘Camshaft Cover’, page 3-11-1).
20. Install the thermostat housing (Refer to ‘Thermostat’, page 3-4-5).
21. Fill the engine coolant system (Refer to ‘Coolant Drain / Fill’, page 3-4-3).
22. Install the exhaust manifold (Refer to ‘Exhaust Manifold’, page 3-2-10).
23. Install the inlet manifold (Refer to ‘Inlet Manifold’, page 3-2-7).
24. Install the engine to vehicle (Refer to ‘Engine’, page 3-1-4).

Inlet Manifold

Removal

1. Depressurise the fuel system (Refer to ‘Depressurising’, page 10-1-8).
2. Disconnect the vehicle battery.

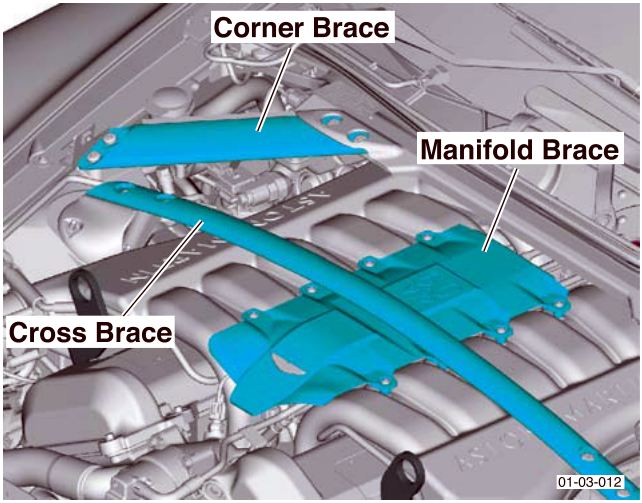

3. Remove the engine bay corner braces (x2), engine bay cross brace and manifold brace.

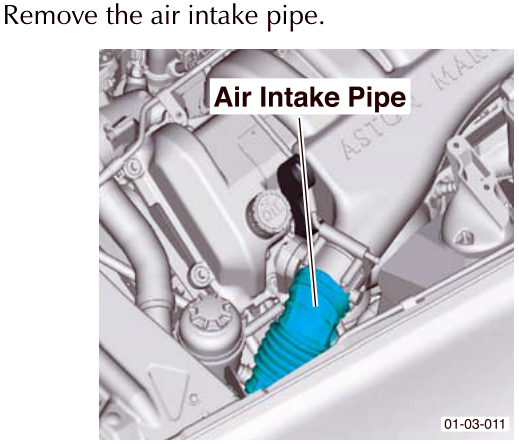

4. Remove the air intake pipe.

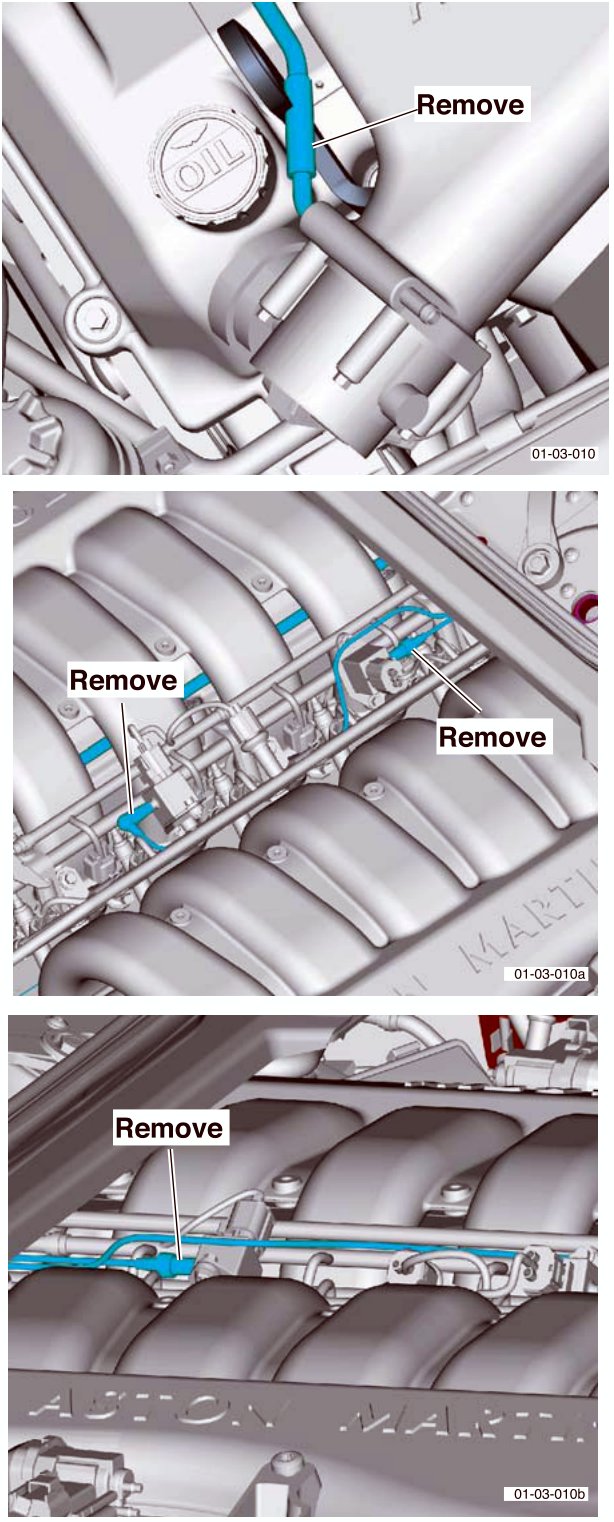

5. Remove the following from the inlet manifold.
