Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)04 · 03 Engine
04 · Engine

Inlet Manifold (page 2 of 2)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Engine Structure
03 EngineInlet Manifold · page 2 of 2

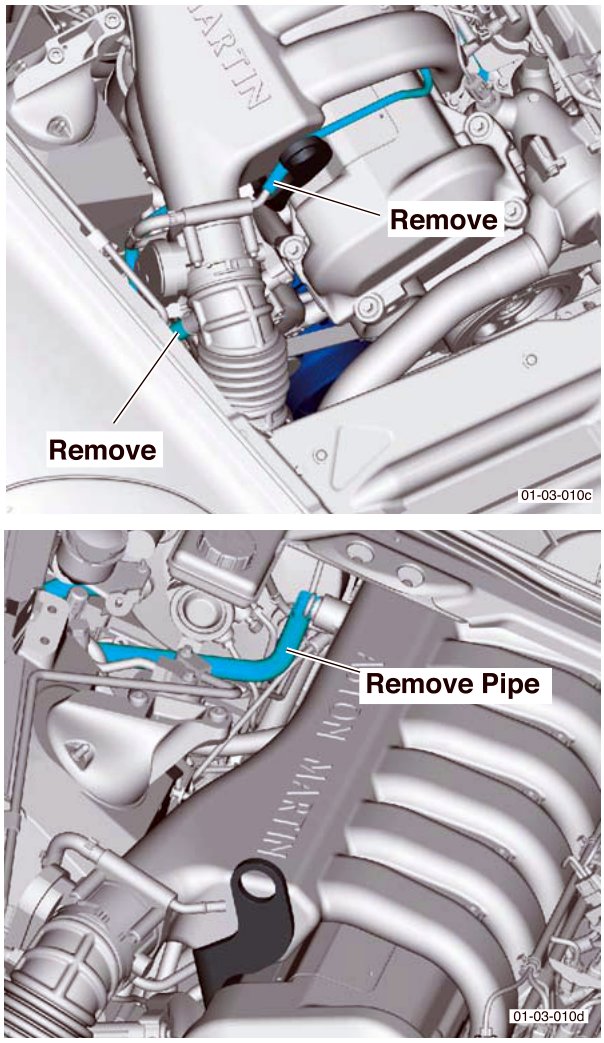

Diagram showing removal of components from the engine, with callouts 'Remove' and 'Remove Pipe'
6. Remove the thermostat housing by-pass hose. Plug the open ends.

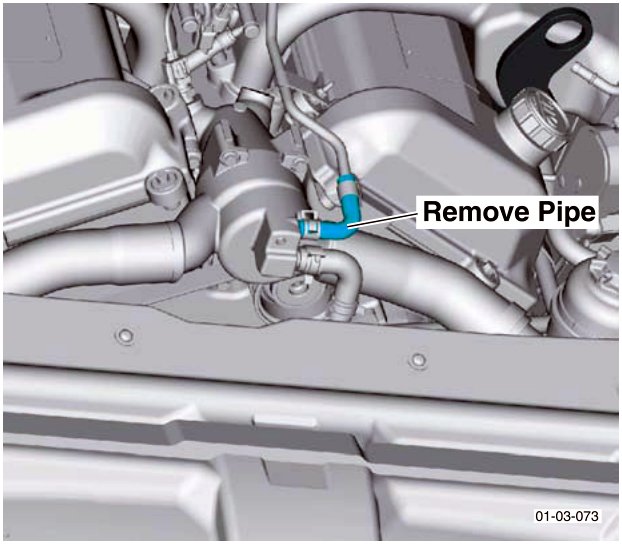

Diagram showing a pipe connection on the engine with callout 'Remove Pipe'
7. Remove the following:
  • Fuel rail temperature sender wiring harness plug
  • Fuel rail pressure sensor wiring harness plug
  • Injector wiring harness plugs

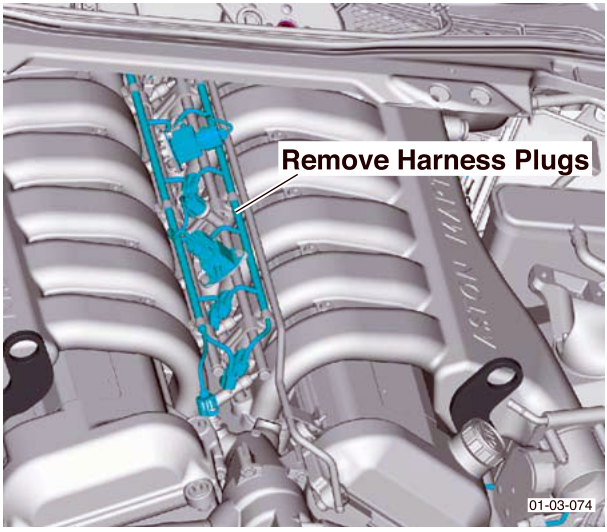

Diagram showing fuel rails and wiring harnesses on the engine with callout 'Remove Harness Plugs'

⚠ Warning ⚠
If the fuel system is pressurised, fuel will be released and may contaminate eyes and / or skin.

8. Remove the fuel rails and injectors.
  1. Remove bolts (x6) that secure the fuel rails.
  2. Withdraw the fuel rails sufficiently to remove the injectors.
  3. Discard the injector ‘O’ rings.

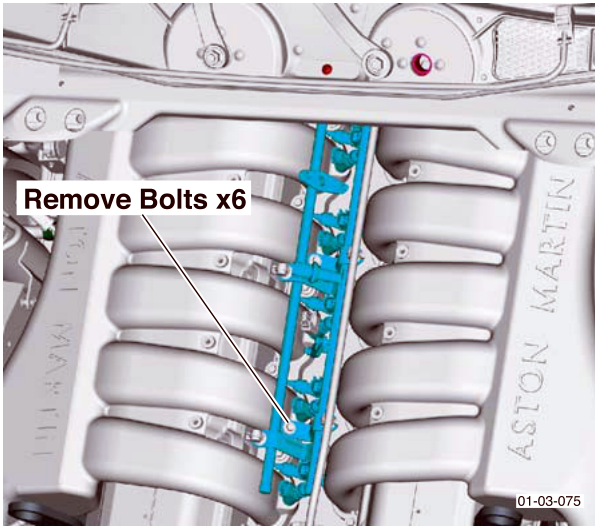

Diagram showing fuel rails secured by bolts with callout 'Remove Bolts x6'
