Engine Structure › LH Manifold
03 EngineLH Manifold · page 1 of 2

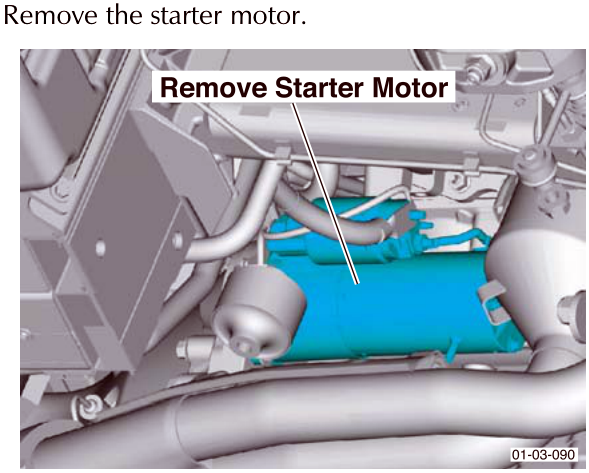

  1. Diagram showing the starter motor location with label Remove Starter Motor
    Remove the starter motor.
  2. Disconnect the heated oxygen sensors (x2) and the Catalyst Monitor sensors (x2).
  3. Remove the exhaust heat shields.

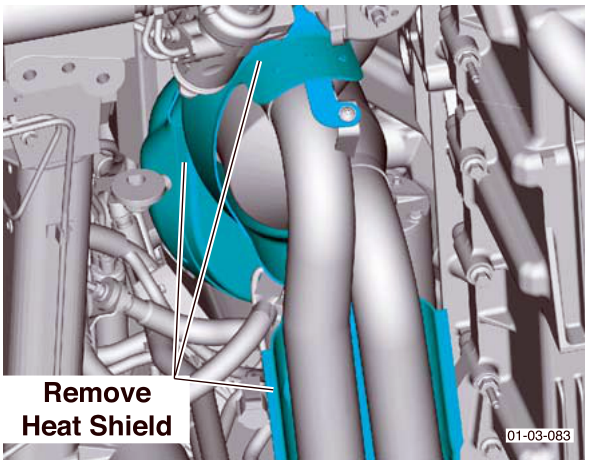

    Diagram showing the exhaust heat shield being removed with label Remove Heat Shield
  4. Disconnect the heated oxygen sensors (x2) and the Catalyst Monitor sensors (x2).

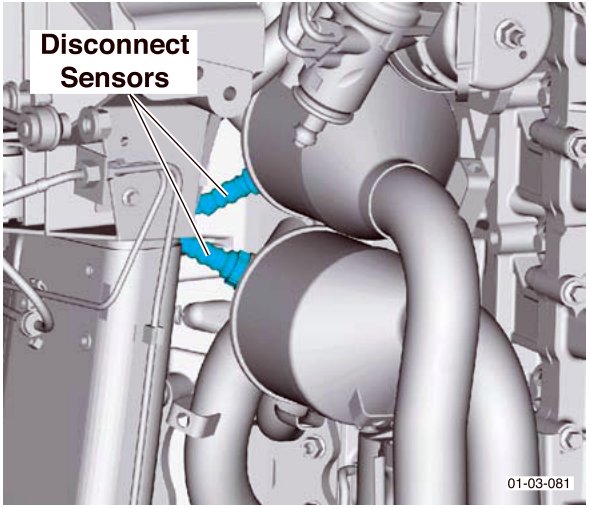

    Diagram showing the catalyst monitor sensors being disconnected with label Disconnect Sensors
  1. Remove exhaust manifold.
    1. Remove manifold nuts (x12).

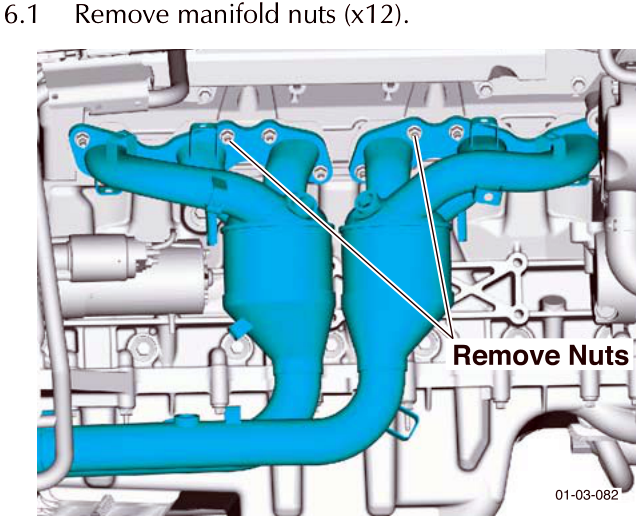

      Diagram showing the exhaust manifold with arrows pointing to nuts, labeled Remove Nuts
    2. Remove nut and bolt (x3).

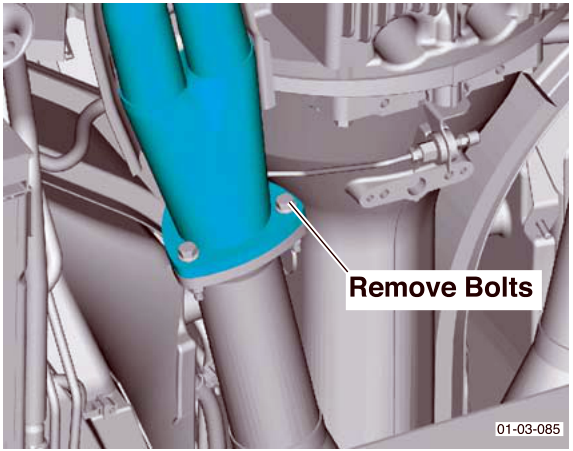

      Diagram showing bolts on the exhaust manifold flange with label Remove Bolts
    3. Withdraw the manifold.
      Discard the manifold gasket.

LH Manifold

  1. Remove the lower steering column (LH drive only).

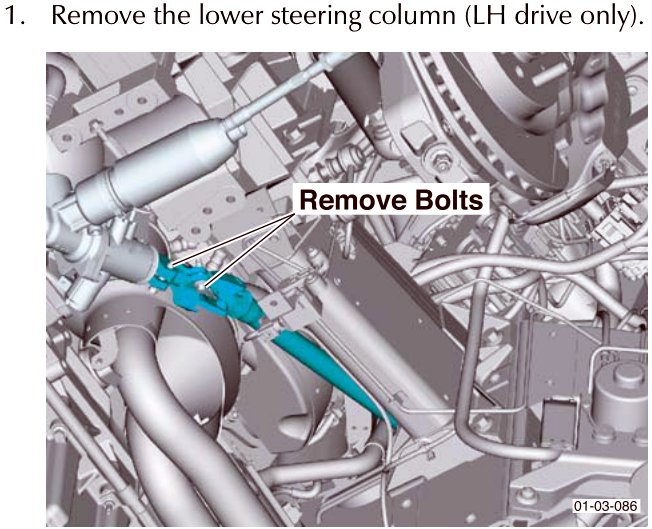

    Diagram showing bolts on the lower steering column with label Remove Bolts
