LH Manifold (page 2 of 2)

Make

Aston Martin

Model

DB9 Factory Workshop Manual

Year

Issue 2, 2005

Section

Engine Structure

03 EngineLH Manifold · page 2 of 2

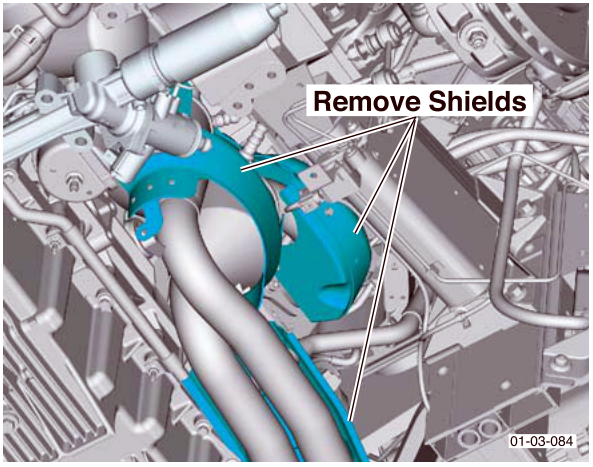

2. Remove the exhaust heat shields.

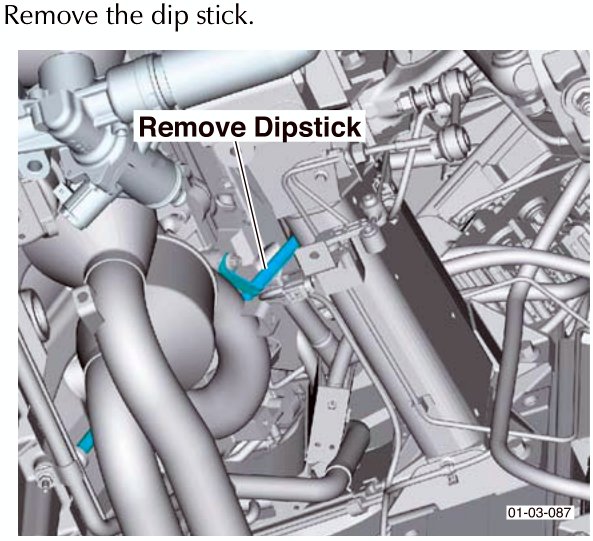

3. Remove the dip stick.

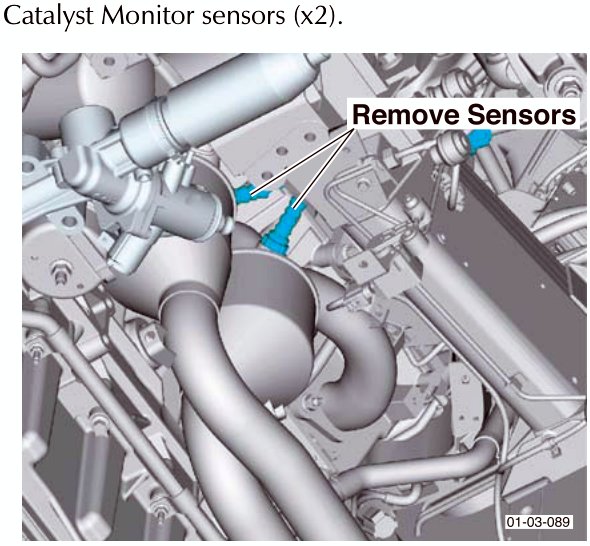

4. Disconnect the heated oxygen sensors (x2) and the Catalyst Monitor sensors (x2).

5. Remove the exhaust manifold.

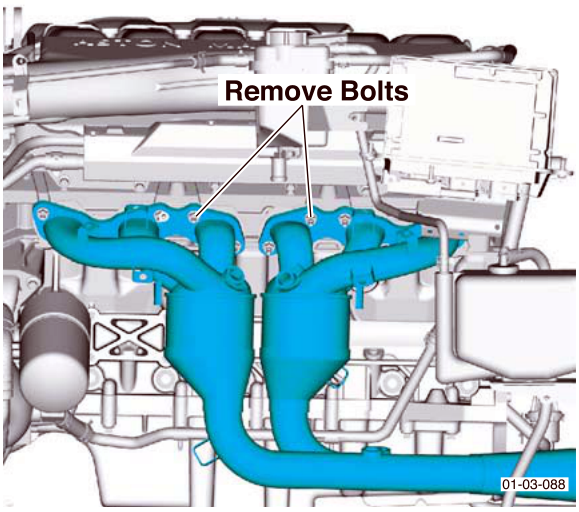

   1. Remove manifold nuts (x12).

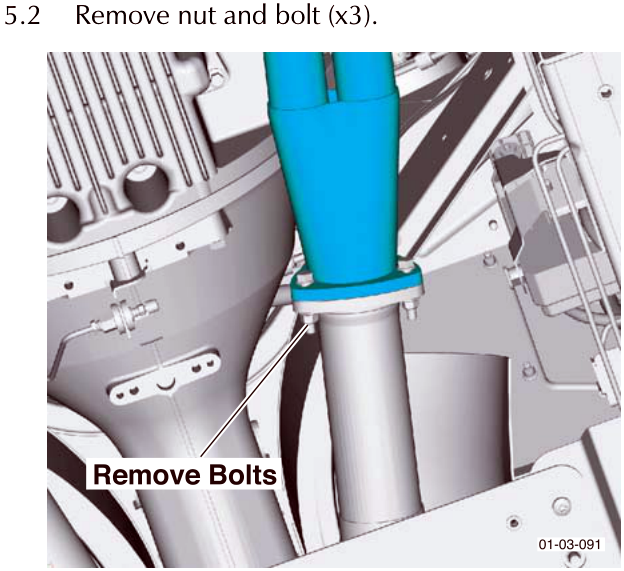

5.2 Remove nut and bolt (x3).

5.3 Withdraw the manifold.

Discard the manifold gasket.
