03 EngineInstallation · page 1 of 2

Installation

Use new gaskets.

  1. Place a new gasket and the exhaust manifold to the cylinder head.
  2. Install nuts (x12). Torque nuts, in sequence shown, to 18-22 Nm.

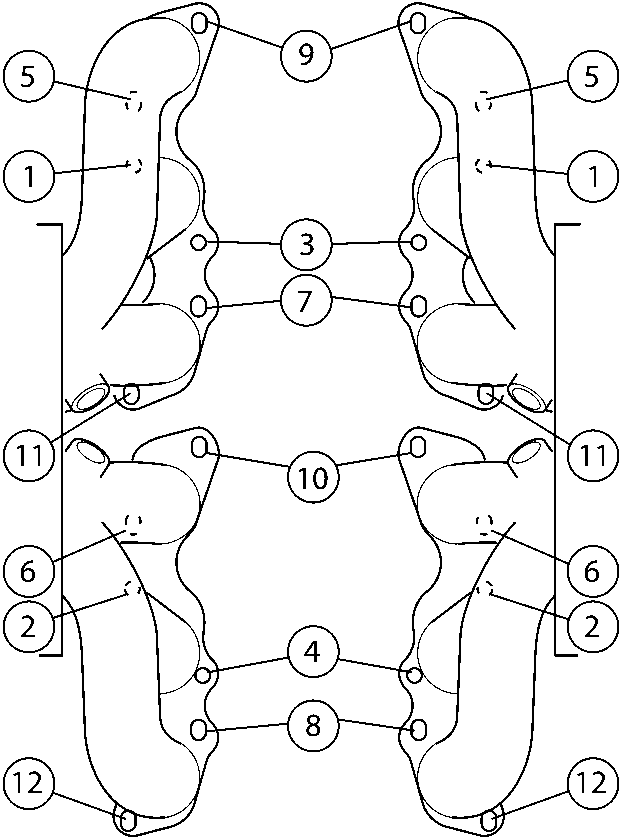

Diagram of exhaust manifold installation sequence showing numbered positions 1 through 12 with an arrow indicating Engine Front.
  1. Install the Heated Oxygen sensors (x2) and the Catalyst Monitor sensors (x2).
  2. Install the exhaust heat shields.
  3. Install:
    1. LH Manifold.
      • The Dip stick
      • The Lower steering column (LH drive only)
    2. RH Manifold.
      • The Alternator
      • The Starter motor
      • The Lower steering column (RH drive only)
  4. Install the front subframe (Refer to 'Front Subframe', page 2-1-2).
  5. Install the lower suspension arms and anti-roll bar links (Refer to 'Front Suspension (04.01)', page 4-2-1).
  6. Install the undertray.
  7. Install the road wheels.(Refer to 'Road Wheel Nut Torque Tightening', page 4-5-7).
