On-Board Refuelling Vapour Recovery

On-Board Refuelling Vapour Recovery

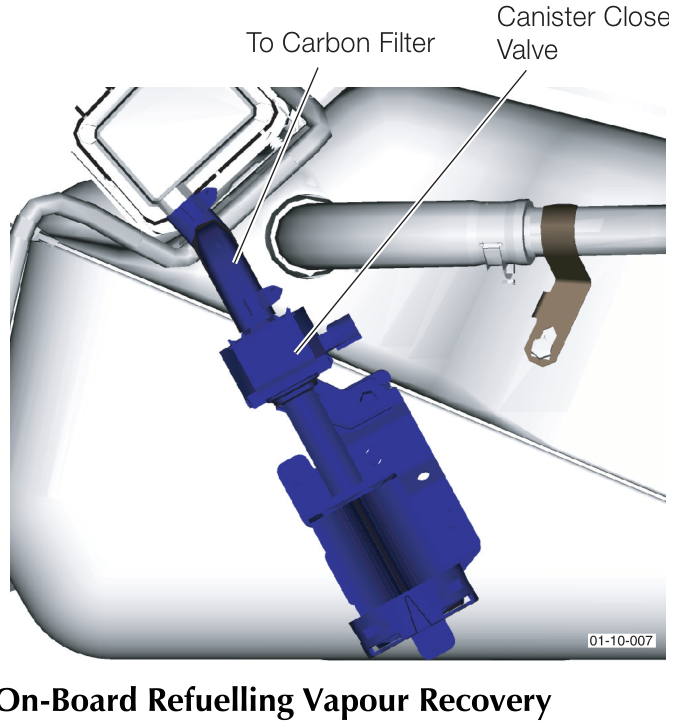

All of the vapour displaced from the tank by refuelling passes through a series of valves and through a carbon canister. This filters out and stores all the fuel vapour and clean air exits the carbon canister port.

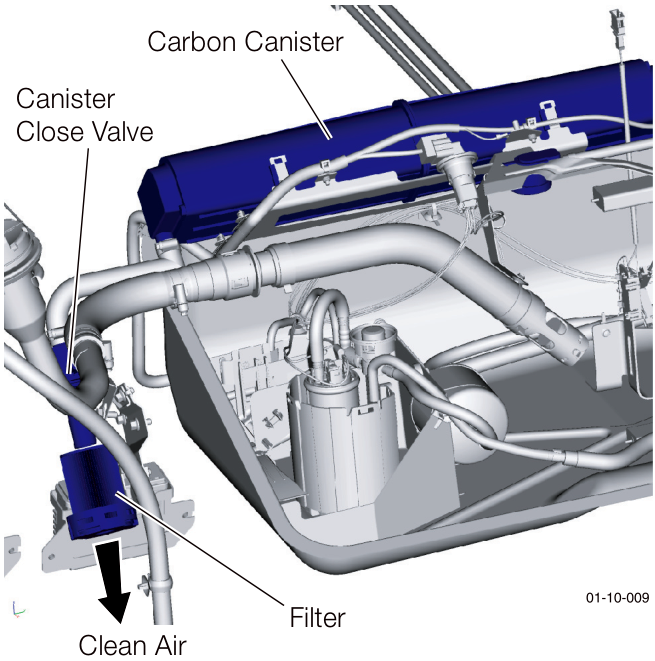

Normal Fuel Fill - Air displaced from the fuel tank during filling can only exit via the fuel level vent valve and be forced through the carbon canister. Any fuel vapour in the displaced air is absorbed in the carbon filter material. No fuel vapour can escape to the atmosphere. Clean air then exits the carbon canister, via and additional filter, to atmosphere.

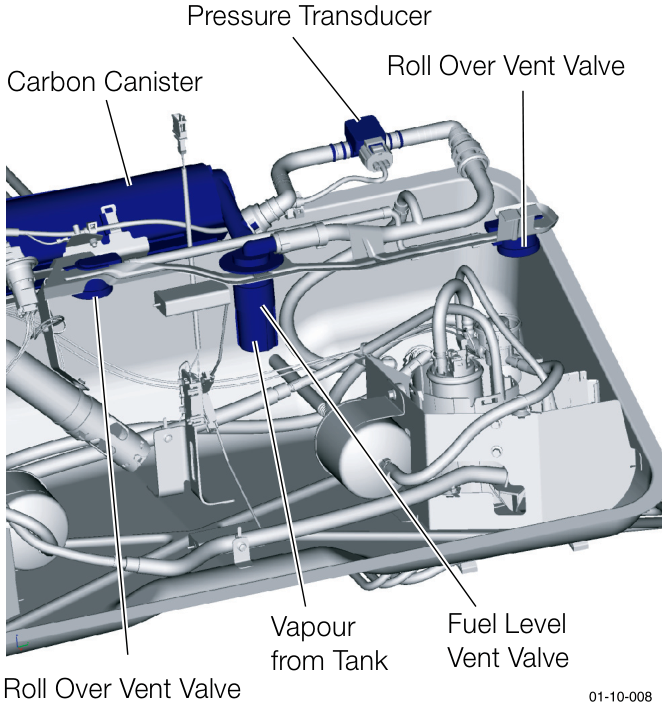

Excessive Fuel Fill - In the event of overfilling of the fuel tank, the fuel level vent valve will close at normal maximum fuel level. Finally the roll over vent valve will close, completely sealing the tank. Any excess pressure in the fuel tank will ‘blow off’ via the Over-pressure vent valve (part of the roll over vent valves) in the Fuel Level vent valve assembly.
