Fuel (10.00)
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Fuel Tank and Lines › Fuel (10.00)
10 FuelFuel (10.00) · page 1 of 2
Fuel (10.00)
Fuel Tank and Lines (10.01)
Description

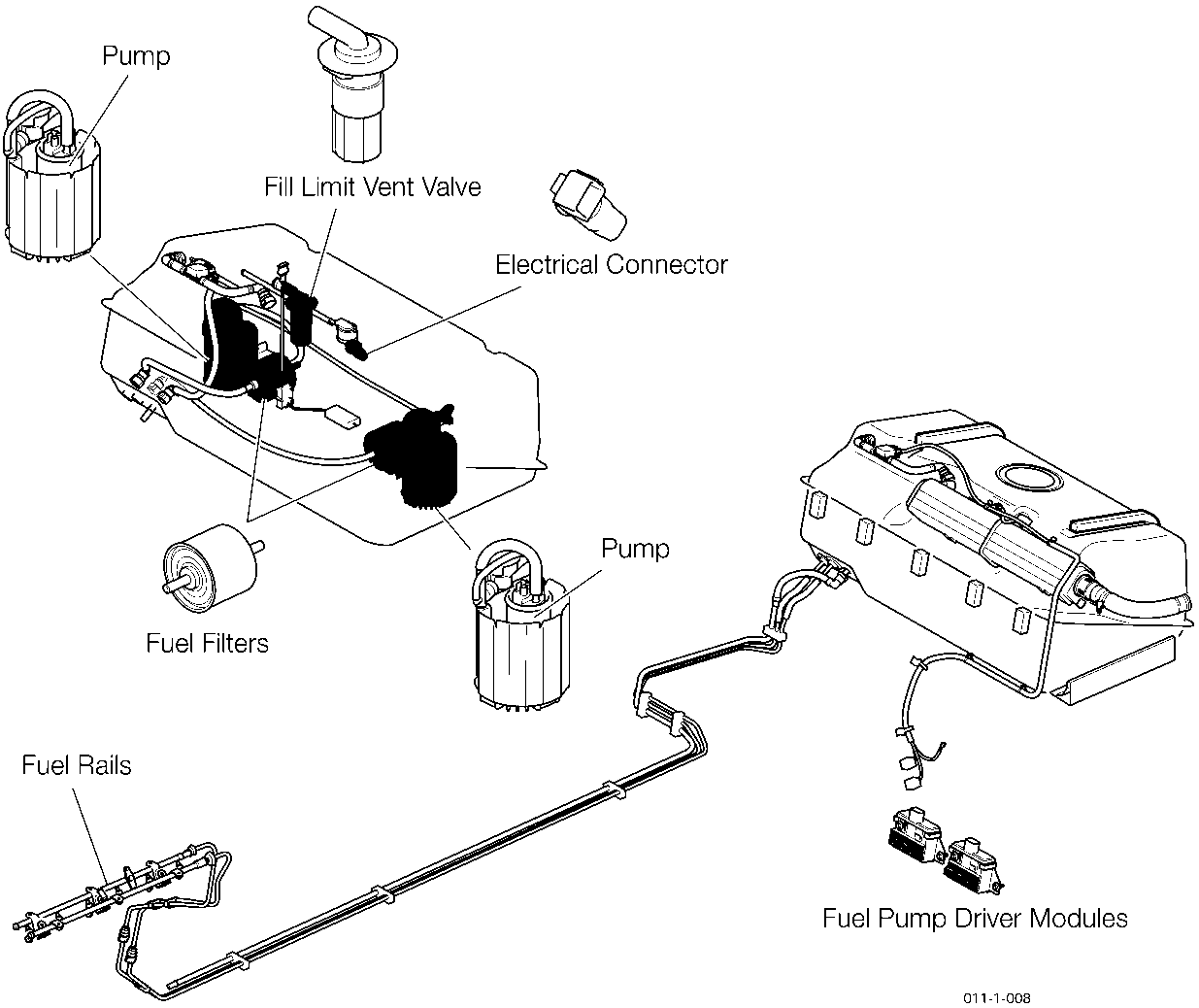

This vehicle uses a return less fuel system in which two fuel pumps, controlled by the fuel pump driver modules, are run to supply fuel through two in-tank filters to the two fuel rails (Refer to 'Fuel Charging System (03.04)', page 3-5-1). Each fuel rail is installed with six fuel injectors. A pressure sensor and a temperature sensor are fitted on the primary fuel rail. The secondary fuel rail is installed only with a pressure sensor. The fuel pump speeds are varied as required to regulate the fuel pressure in the fuel rails.
The RH fuel pump feeds the engine LH bank fuel rail.
The LH fuel pump feeds the engine RH bank fuel rail.
