10 FuelFuel (10.00) · page 2 of 2

The fuel tank incorporates a single filler neck and check valve, internal fuel pumps, internal fuel filters, a sender unit and an ‘on board refuelling vapour recovery’ system.

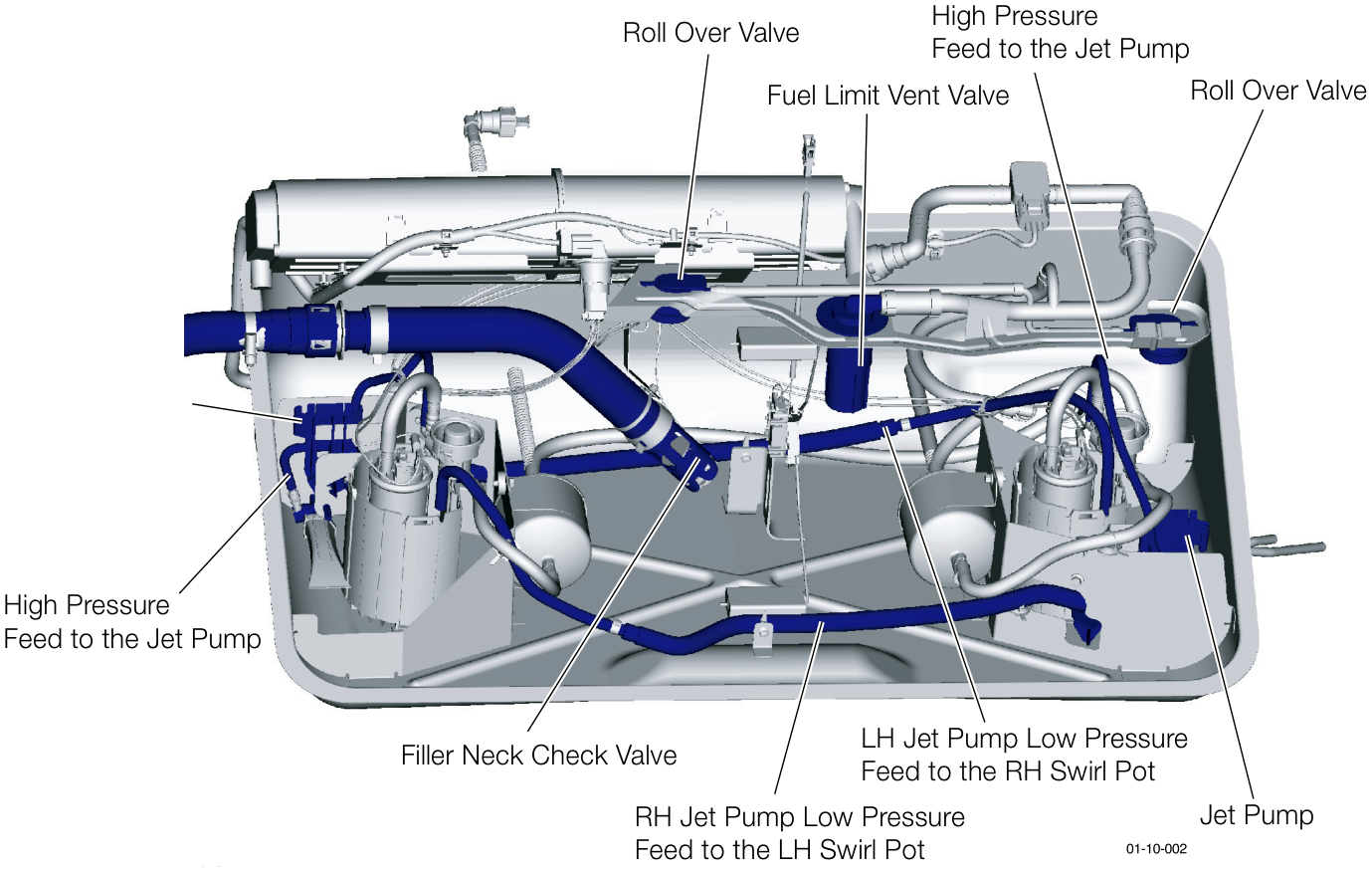

Diagram of the fuel tank assembly showing internal components including jet pumps, swirl pots, roll over valves, and the filler neck check valve with associated high and low pressure feed lines.
  1. Roll Over Valve
  2. High Pressure Feed to the Jet Pump
  3. Fuel Limit Vent Valve
  4. Roll Over Valve
  5. Jet Pump
  6. High Pressure Feed to the Jet Pump
  7. Filler Neck Check Valve
  8. RH Jet Pump Low Pressure Feed to the LH Swirl Pot
  9. LH Jet Pump Low Pressure Feed to the RH Swirl Pot
