BONNET LID OPENING CONTROL - R.R.

Operation 7025A26 · BONNET LID

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

Op. 7040L42

Op. 7040A49 CONNECTOR HOLDER TRIM FOR EOBD - R.R.

Op. 7025A24 BONNET LID OPENING LEVER - R+R

Op. 5530B10 BATTERY - R+R

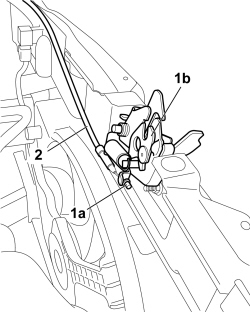

1. Disconnect idler link (1a) from bonnet catch (1b).

2. Release the bonnet opening cable from the retaining clips on the front-end 1. Disconnect idler link (1a) from bonnet catch (1b).

3. Attach a probe to the end inside the passenger compartment.

- Retrieve the control cable from the engine compartment.

Refitting

- If replacing the control cable, attach a probe to the end of the control lever

- Fit the control cable, taking care that the bulkhead coupling seal is correctly positioned, and connect it to the retainers.

- Connect the control to the reaction bracket.

Op. 5530B10 BATTERY - R+R

Op. 7025A24 BONNET LID OPENING LEVER - R+R

Op. 7040A49 CONNECTOR HOLDER TRIM FOR EOBD - R.R.

Op. 7040L42
