Backrest folding control cable/rod - r.r.

Make

Fiat

Model

500 Factory Service Manual

Year

2007–2024

Section

Front seats › Backrest folding control cable/rod - r.r.

Body fittingsBackrest folding control cable/rod - r.r.

BACKREST FOLDING CONTROL CABLE/ROD - R.R.

Operation 7045L30 · MANUAL MOVEMENT OF ELECTRIC FRONT SEATS

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

Before removing and refitting the Air Bag module, carry out the following preliminary operations.

Position the vehicle with the front wheels straight.

Turn the ignition key to the STOP position and extract it.

Disconnect the battery terminals and insulate them.

Wait for 10 minutes before continuing.

FOLLOW ALL THE RECOMMENDED SAFETY INSTRUCTIONS

Op. 5580C AIR BAG SYSTEM

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

Op. 7045A18 FRONT SEAT BACKREST ASSEMBLY (ONE), LEFT OR RIGHT - R.R.

Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

Op. 7045A48 LEVER AND TRIM FOR FOLDING BACKREST - R.R.

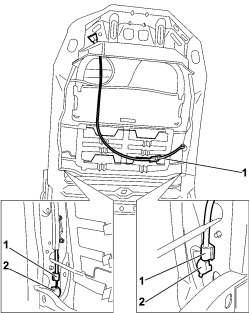

1. Unhook the backrest frame clips.

2. Release the control link, take off and remove.

Refitting

- Fit the link, securing it to the structure and to the retaining clips.

Op. 7045A48 LEVER AND TRIM FOR FOLDING BACKREST - R.R.

Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

Op. 7045A18 FRONT SEAT BACKREST ASSEMBLY (ONE), LEFT OR RIGHT - R.R.

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

- Connect the battery terminals.

	Description	Connector
	Battery	See A001 BATTERY
