INTRODUCTION

1.2 8v, 1.3 Multijet, 1.4 16v

INTRODUCTION

The rear seats are fitted with a structured backrest to guarantee the maximum safety of the occupants in different types of impact, including any objects in the luggage compartment being thrown forwards.

There are two types of backrest and seat:

• single seat and backrest,
• single seat and split backrest.

There are two head restraints on the seats that can be adjusted into two positions.

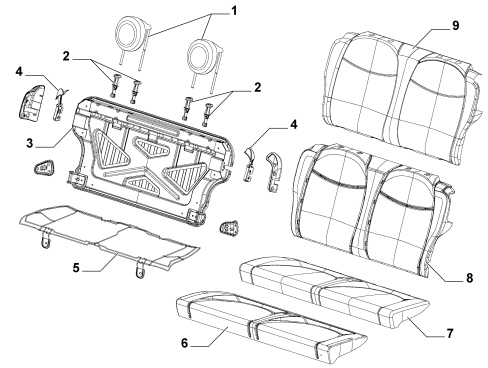

The structure of the one-piece seat is illustrated in the diagram below.

1. Head restraints

2. Head restraint guide bushes

3. Backrest structure

4. Backrest release devices

5. Cushion frame

6. Cushion upholstery

7. Cushion cover

8. Single backrest cover

9. Single backrest upholstery

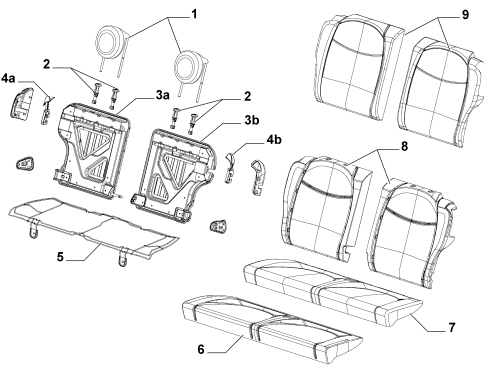

The structure of the split seat is illustrated in the diagram below.

1. Head restraints

2. Head restraint guide bushes

3a. Right backrest structure

3b. Left backrest structure

4a. Right backrest release devices

4b. Left backrest release devices

5. Cushion frame

6. Cushion upholstery

7. Cushion cover

8. Split backrest cover

9. Split backrest upholstery
