ONE-PIECE REAR SEAT CUSHION - R.R.

Operation 7050A20 · REAR SEAT ASSEMBLY

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

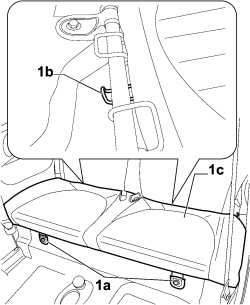

1. Undo bolts (1a), release rear retainers (1b) and remove rear seat cushion (1c).

Refitting

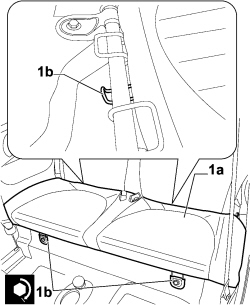

1 Fit cushion in place (1a), secure rear retainers (1b) and tighten retaining bolts (1c) to the correct torque.

Component	Fastening	dia	Value (daNm)	Validity
4 seater rear seat cushion	Bolt	M10x1.25	4.0	all versions
