REAR SEAT BACKREST FRAME - R.R.

Operation 7050A54 · REAR SEAT ASSEMBLY

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

Op. 7050A19 REAR SEAT BACKREST - R.R

Op. 7050A68 LH OR RH PROTECTION (ONE) OF ONE REAR SEAT SQUAB RELEASE MECHANISM R R

Op. 7050A42 REAR BACKREST CATCH DEVICE (ONE) - R+R

- Remove both rear head restraints as described in:

Op. 7050B12 REAR SEAT HEAD RESTRAINT - R.R.

- Remove all the guide bushes for the rear head restraints as described in:

Op. 7050B08 GUIDE BUSH FOR HEAD RESTRAINT (ONE) FOR REAR SEAT - R.R

Op. 7050A30 REAR SEAT CUSHION COVER - R.R. WITH SEAT REMOVED

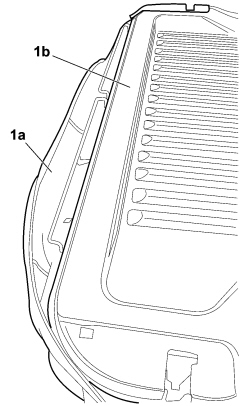

1. Starting from the seat for one of the two attachment devices, release the entire perimeter of the cover (1a) from the backrest frame (1b).

1. Remove the frame for the rear seat backrest.

Refitting

- Check the condition of the rear seat backrest.

- Fit the upholstery on the rear seat backrest and fit the cover taking care that the fabric is taut and not creased.

Op. 7050A30 REAR SEAT CUSHION COVER - R.R. WITH SEAT REMOVED

- Fit all the guide bushes for the rear head restraints as described in:

Op. 7050B08 GUIDE BUSH FOR HEAD RESTRAINT (ONE) FOR REAR SEAT - R.R

- Fit both rear head restraints as described in:

Op. 7050B12 REAR SEAT HEAD RESTRAINT - R.R.

Op. 7050A42 REAR BACKREST CATCH DEVICE (ONE) - R+R

Op. 7050A68 LH OR RH PROTECTION (ONE) OF ONE REAR SEAT SQUAB RELEASE MECHANISM R R

Op. 7050A19 REAR SEAT BACKREST - R.R
