ABS SYSTEM PIPES

Description 3340B

1.2 8v, 1.3 Multijet, 1.4 16v

Introduction

The ABS pipes can be divided into three groups:

• brake pump pipes to ABS control unit;
• rigid connecting pipes from the ABS control unit to the front and rear flexible pipes. The rear brake pipes are divided into two sections, for fitting requirements, and they are protected by a special shield in the section exposed to the risk of damage;
• flexible connecting pipes between the rigid pipes and the brake callipers.

The rigid and flexible pipes are secured to the body by special brackets and/or fastening clips.

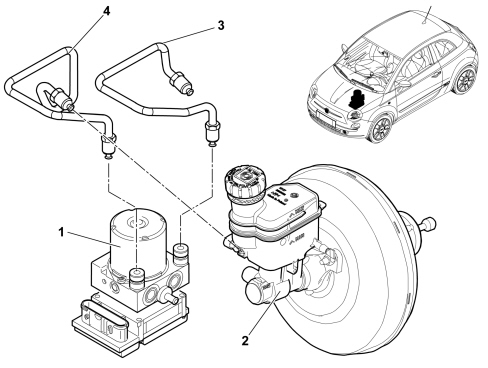

Pipes between the pump and the control unit.

1. A.B.S. electrohydraulic control unit

2. Brake pump

3. Rigid pipe from master cylinder to A.B.S. control unit: for brake operation: right front and left rear

4. Rigid pipe from master cylinder to A.B.S. control unit: for brake operation: left front and right rear

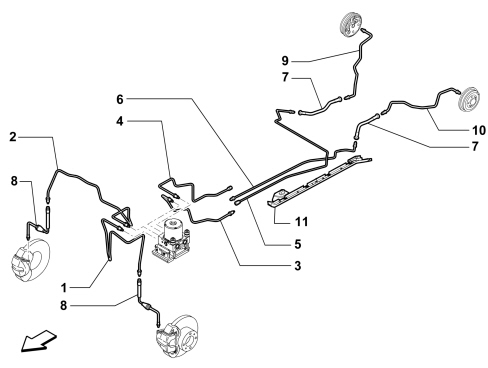

Front and rear section pipes.

1. Rigid pipe from A.B.S. control unit to left front brake

2. Rigid pipe from A.B.S. control unit to right front brake

3. Front section of rigid pipe from A.B.S. control unit to right rear brake

4. Front section of rigid pipe from A.B.S. control unit to left rear brake

5. Rear section of rigid pipe from A.B.S. control unit to right rear brake

6. Rear section of rigid pipe from A.B.S. control unit to left rear brake

7. Rear hoses

8. Front hoses

9. Right rear rigid pipe

10. Left rear rigid pipe

11. Lower guard
