INTRODUCTION - AUXILIARY DRIVEBELTS

1.3 Multijet

STRUCTURE

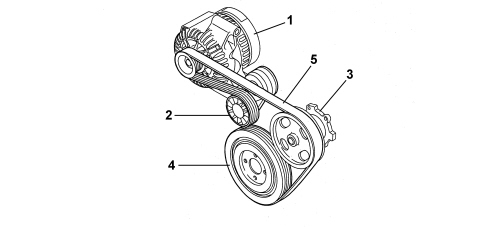

The poly-v engine component drivebelt (5) controls alternator (1), water pump (3) and, where applicable, air conditioning compressor (6).

There is an automatic tensioner (2) which means that no maintenance operations are required.

Crankshaft pulley (4) contains a flexible section which reduces crankshaft torsional vibration and stresses on the belt and thus on auxiliary engine components.

1. Alternator

2. Belt tensioner

3. Water pump

4. Crankshaft pulley

5. Auxiliary drive belt

STRUCTURE

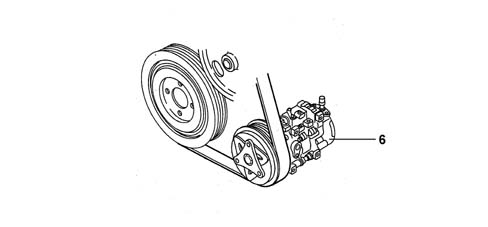

For versions with climate control

6. Air conditioning compressor

1.4 16v

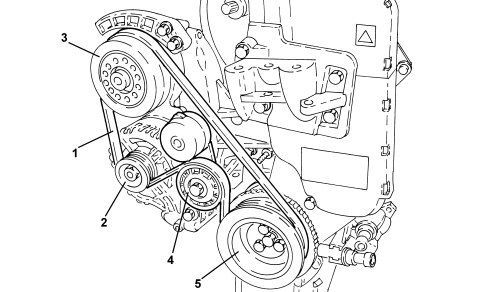

It is the Poly-V type and controls the alternator and the air conditioning compressor.

There is an automatic tensioner, which means that no maintenance operations are required.

1. Auxiliary drivebelt

2. Alternator

3. Air conditioning compressor

4. Automatic tensioner

5. Crankshaft pulley
