SWITCH FOR WATER TEMPERATURE WARNING LIGHT - R.R.

Operation 1088E30 · COOLANT TEMPERATURE CONTROL DEVICES

1.2 8v

Removing

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

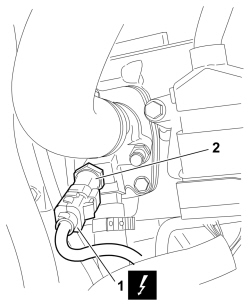

1. Disconnect the electrical connection for the engine coolant temperature sensor/sender unit.

	Description	Connector
1	Engine coolant temperature sensor/sender unit	See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT

2. Undo the engine coolant temperature sensor/sender unit and remove it.

Refitting

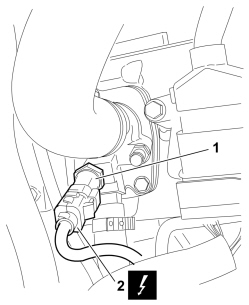

1. Tighten the engine coolant temperature sensor/sender unit in place.

2. Connect the electrical connection for the engine coolant temperature sensor/sender unit.

	Description	Connector
2	Engine coolant temperature sensor/sender unit	See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R
