ENGINE COOLING RADIATOR

Description 1088B

1.2 8v

Radiator reservoir

In addition to supplying the circuit, the built-in coolant reservoir at the side of the radiator absorbs the variations in the volume of the coolant as the temperature of the engine varies.

A special valve calibrated at 1.4 bar in the pressurised cap assures the following:

• escape of air from the circuit collected by the pipe coming from the thermostat
• air intake when the circuit contains a vacuum (due to engine cooling).

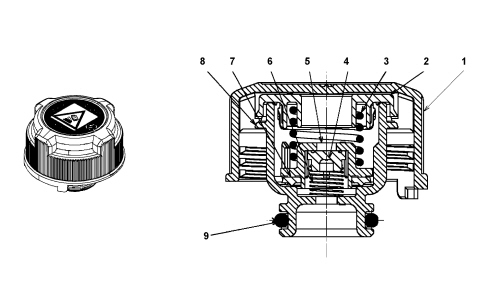

1. Threaded cover

2. Closing cover

3. Pressure spring

4. Vacuum seal

5. Pressure valve

6. Vacuum spring

7. Pressure seal

8. Cap

9. O-ring seal

For the system leakage and pressurized cap operating test, see Op. 0510C30.

Radiator

It consists of a radiant mass and two side tanks for the intake and outlet of coolant.

The radiator pipes and fins are aluminium, the tanks are plastic.

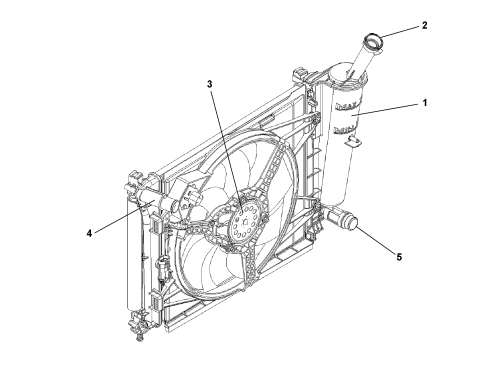

1. Expansion tank on reservoir

2. Coolant filler

3. Cooling fan

4. Radiator water intake pipe

5. Radiator water outlet pipe

1.3 Multijet, 1.4 16v

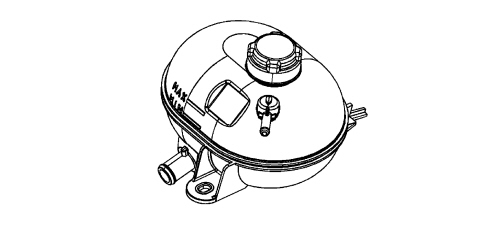

ENGINE COOLANT RESERVOIR

A special calibrated valve in the pressurised cap assures the following:

• escape of air from the circuit collected by the pipe coming from the thermostat
• air intake when the circuit contains a vacuum (due to engine cooling).

1. Threaded cover

2. Closing cover

3. Pressure spring

4. Vacuum seal

5. Pressure valve

6. Vacuum spring

7. Pressure seal

8. Cap

9. O-ring seal

For the system leakage and pressurized cap operating test

Op. 0510C30 ENGINE COOLING SYSTEM - LEAKAGE TEST

ENGINE COOLING RADIATOR

It consists of a radiant mass and two side tanks for the intake and outlet of coolant.

The radiator pipes and fins are aluminium, the tanks are plastic.

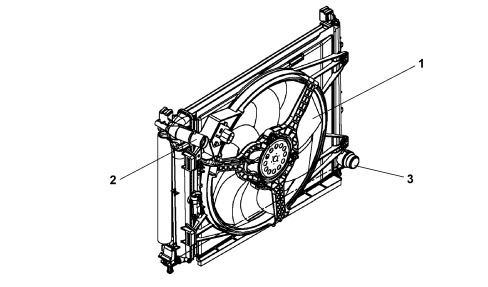

1. Cooling fan

2. Radiator water intake pipe

3. Radiator water outlet pipe
