ENGINE COOLANT SUPPLY RESERVOIR - R.R.

Operation 1088B10 · ENGINE COOLING RADIATOR

1.3 Multijet, 1.4 16v

Removing

Op. 0010T20 ENGINE COOLANT - CHANGE

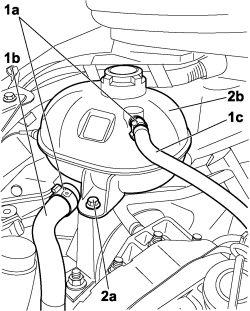

1. Open retaining bands (1a) and disconnect engine coolant supply (1b) and return (1c) pipe, supply tank side.

2. Unscrew bolt (2a) and remove supply tank (2b), releasing the rear pins secured to the body.

Refitting

1. Position the expansion tank in its housing, inserting the rear pins in position on the body.

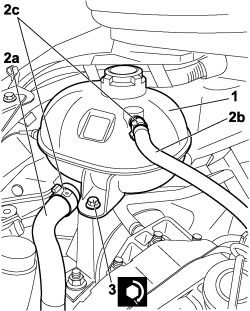

2. Connect engine coolant supply (2a) and return (2g) pipe, supply tank side, and secure it with retaining bands (2c).

3. Tighten the supply tank retaining bolt to the recommended torque.

Op. 0010T20 ENGINE COOLANT - CHANGE
