UPPER RADIATOR COOLANT INLET HOSE - R.R.

Operation 1088D14 · COOLANT PIPES AND HOSES

1.2 8v

Removing

- Position a suitable container to collect the coolant

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

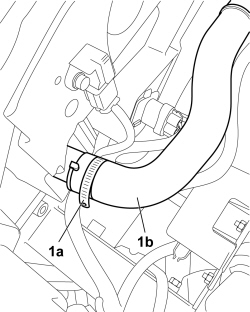

1. Open retaining band (1a) and disconnect engine coolant inlet hose (1b) to the radiator, radiator side.

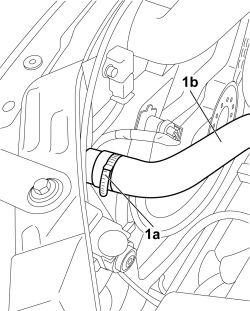

1. Open retaining band (1a) and disconnect engine coolant inlet hose (1b) to the radiator, thermostat unit side.

- Remove the pipe.

Refitting

- Check that the pipe is not damaged, otherwise replace.

- Connect the coolant inlet hose to the radiator, radiator side, and secure it with the retaining band.

- Connect the coolant inlet hose to the radiator, thermostat unit side, and secure it with the retaining band.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

Op. 0010T20 ENGINE COOLANT - CHANGE

1.4 16v

Removing

- Have a suitable container for collecting the coolant ready.

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

1. Open the retaining bands (1a) and disconnect the coolant inlet pipe from the thermostat unit (1b) and from the radiator (1c).

2. Remove the coolant inlet hose.

Refitting

- Check that the pipe is not damaged; if it is, replace it.

- Connect the coolant inlet hose to the radiator, radiator side, and secure it using the band.

- Connect the coolant inlet hose to the radiator, thermostat unit side, and secure it using the band.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 0010T20 ENGINE COOLANT - CHANGE

1.3 Multijet

Removing

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

- Position a suitable container for collecting the coolant.

1. Open band (1a) and disconnect radiator coolant inlet hose (1b), radiator side.

1. Open retaining band (1a) and disconnect radiator coolant inlet hose (1b), thermostat side.

1. Remove pipe (1a) from housing, releasing it from retaining clip (1b).

Refitting

- Check that the pipe is not damaged. If it is, replace it.

- Connect radiator coolant inlet hose, radiator and thermosat side, and secure it with the new retaining clips.

- Secure the hose to the retaining clip.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

Op. 0010T21 ENGINE COOLANT - CHECK DENSITY AND TOP UP, IF NECESSARY
