DEGASSING PIPE FROM THERMOSTAT TO ENGINE COOLANT RESERVOIR - R.R

Operation 1088D04 · COOLANT PIPES AND HOSES

1.3 Multijet

Removing

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

- Position a suitable container for collecting the coolant.

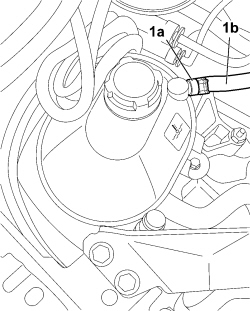

1. Open retaining band (1a) and disconnect degassing pipe (1b), coolant reservoir side.

2. Disconnect the degassing pipe quick coupling from the thermostat unit.

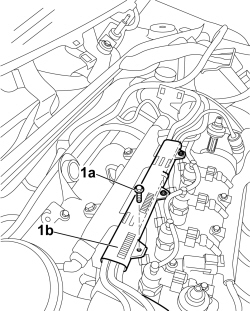

1. Undo bolts (1a) and open protection (1b) for the degassing pipe and fuel filter.

- Release the degassing pipe from the retaining clip and remove it.

Refitting

- Fit the degassing pipe in place and secure to the retaining clip.

- Fit the protection for the degassing pipe and fuel filter and tighten the bolts.

- Connect the degassing pipe quick coupling, thermostat unit side.

- Connect the degassing pipe, collant reservoir side, and secure it with a new retaining band.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 0010T21 ENGINE COOLANT - CHECK DENSITY AND TOP UP, IF NECESSARY
