RACK AND PINION STEERING BOX

Description 4120A

1.2 8v, 1.3 Multijet, 1.4 16v

Introduction

Technical specifications for 1.2 8V petrol engine without electric steering:

• total travel: 152 mm
• reduction ratio: 38 mm/rpm
• turning circle between pavements: 9.2 m.

Technical specifications for 1.2 8V petrol engine and 1.3 Multijet engine with electric steering:

• total travel: 152 mm
• reduction ratio: 51 mm/rpm
• turning circle between pavements: 9.2 m.

Technical specifications for 1.4 16V petrol engine (with electric steering):

• total travel: 128 mm
• reduction ratio: 51 mm/rpm
• turning circle between pavements: 10.6m. turning circle between pavements: 9.2 m.

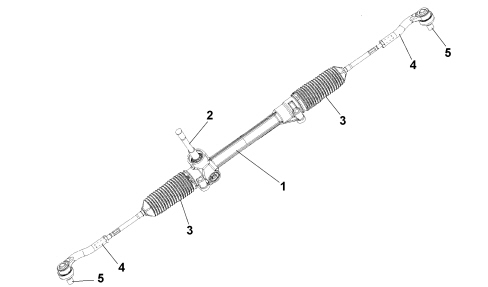

1. Steering box

2. Pinion

3. Protective boot

4. Wheel-side link

5. Wheel-side link pin
