STEERING ELECTRICAL CONTROL DEVICE - R R

Operation 4110D20 · STEERING ELECTRICAL CONTROL SYSTEM

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

FOLLOW ALL THE RECOMMENDED SAFETY INSTRUCTIONS

Op. 5580C AIR BAG SYSTEM

- Straighten the front wheels, then engage the first steering lock to the right and remove the ignition key.

- Keep the steering column adjustment lever closed during all the removing-refitting stages.

Op. 7040A26 STEERING COLUMN TRIM - R+R

- If the vehicle is equipped with knee bags

Op. 5580C23 DRIVER'S KNEE BAG - R.R.

Op. 7040A30

Op. 5580C18 AIR BAG MODULE - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

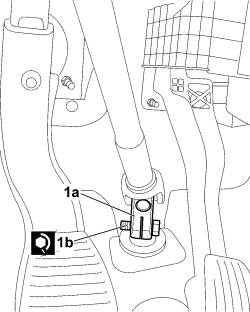

1. Undo the bolt (1a) and disconnect the steering column joint (1b) from the steering box.

1. Disconnect the electrical connections for the electric steering control.

2. Cut the lower band for the dashboard trim along the line shown using a suitable blade.

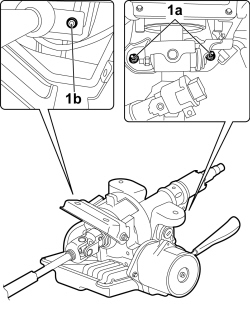

1. Undo the nuts (1a) and the bolts (1b) and remove the electrically operated steering assembly.

Refitting

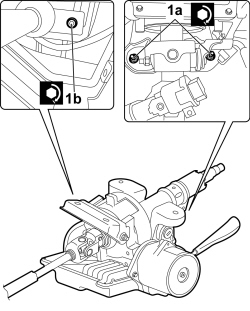

1. Fit the electrically operated steering assembly and tighten the nuts (1a) and the bolts (1b) to the recommended torque.

1. Make 3 holes in the section of the dashboard trim cut previously.

2. Using a thin metal plate of the size illustrated in the diagram, secure it using rivets to the cut edges of the dashboard trim.

1. Connect the electrical connections for the electric steering control.

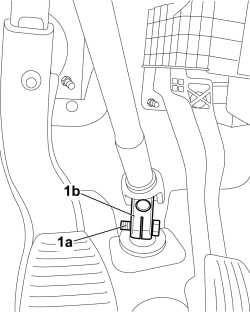

1. Connect the joint (1a) for the steering column to the steering box and tighten the fixing bolt (1b) to the recommended torque.

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5580C18 AIR BAG MODULE - R+R

Op. 7040A30

- If the vehicle is equipped with knee bags

Op. 5580C23 DRIVER'S KNEE BAG - R.R.

Op. 7040A26 STEERING COLUMN TRIM - R+R

- Connect the battery terminals.
