STARTER MOTOR - R+R

Operation 5520B10 · STARTER MOTOR AND COMPONENTS

1.9 JTD 8v, 1.9 JTD 16v

Removing

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 1008C30 POWER UNIT LOWER REACTION LINK - R.R.

Op. 1008C33 BRACKET ON ENGINE FOR LOWER REACTION ROD - R.R.

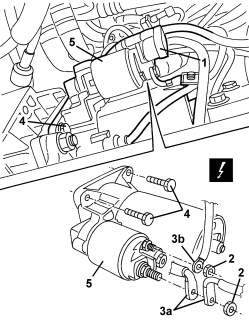

1. Open the protective cover for the starter motor electrical connections.

2. Undo the nuts.

3. Disconnect electrical connections (3a) and ( 3b) from the starter motor.

4. Undo the bolts securing the starter motor.

5. Remove the starter motor.

Refitting

- Check that the starter motor is not damaged.

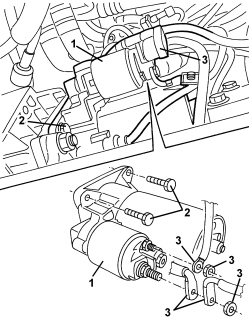

1. Place the starter motor in position.

2. Tighten the starter motor retaining bolts to the specified torque.

3. Connect the electrical connections for the starter motor, tighten the nuts and close the protective cover.

Op. 1008C33 BRACKET ON ENGINE FOR LOWER REACTION ROD - R.R.

Op. 1008C30 POWER UNIT LOWER REACTION LINK - R.R.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

1.4 16v

Removing

- Position the vehicle on a lift.

- Open the bonnet.

1. Working from the left side of the engine, unscrew the upper starter motor bolt.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

1. Open the protective cover for the starter motor electrical connections.

2. Undo the nut.

3. Disconnect electrical connections (3a, 3b) from the starter motor.

4. Unscrew the lower starter motor bolt.

5. Remove the starter motor.

Refitting

- Check that the starter motor is not damaged.

1. Place the starter motor in position.

2. Screw in the lower starter motor bolt and tighten to the recommended torque.

3. Connect electrical connections (3a) for the starter motor; tighten nut (3b) and close protective cover (3c).

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

- Lower the vehicle.

1. Tighten the upper bolt securing the starter motor to the recommended torque.

- Close the bonnet.

- Remove the vehicle from the lift.

1.4 16v TJet

Removing

- Position the vehicle on a lift.

- Open the bonnet.

1. Working from the left side of the engine, unscrew the upper starter motor bolt.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

1. Open the protective cover for the starter motor electrical connections.

2. Undo the nut.

3. Disconnect electrical connections (3a, 3b) from the starter motor.

4. Unscrew the lower starter motor bolt.

5. Remove the starter motor.

Refitting

- Check that the starter motor is not damaged.

1. Place the starter motor in position.

2. Screw in the lower starter motor bolt and tighten to the recommended torque.

3. Connect electrical connections (3a) for the starter motor; tighten nut (3b) and close protective cover (3c).

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

- Lower the vehicle.

1. Tighten the upper bolt securing the starter motor to the recommended torque.

- Close the bonnet.

- Remove the vehicle from the lift.
