INTRODUCTION - BELT-DRIVEN TIMING SYSTEM
CONSTRUCTION SPECIFICATIONS

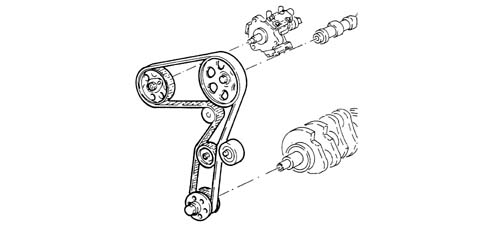

Direct control, via toothed belt, which drives the pressure pump and water pump in addition to the camshaft.
CONSTRUCTION SPECIFICATIONS

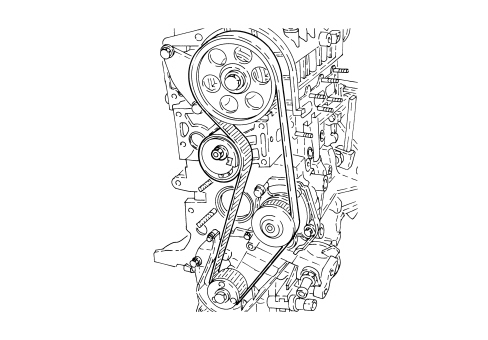

Direct drive, via toothed belt that drives the coolant pump in addition to the exhaust side camshaft.

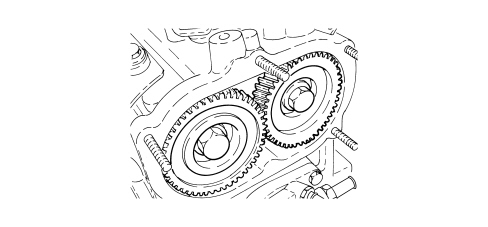

The exhaust shaft and the inlet shaft drive is produced through two gears, with clearance recovery, fitted at the rear as illustrated.
