OVERHEAD CAMSHAFT IN CYLINDER HEAD - R.R ON VEHICLE

Operation 1036B10 · OVERHEAD CAMSHAFT (1) IN CYLINDER HEAD (1)

1.9 JTD 8v

Removing

Op. 1016A10 SOUND-PROOFING COVER - R.R

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 1092A10 CRANKSHAFT PULLEY - R + R

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 1032D27 TIMING SYSTEM FRONT PROTECTIVE COVER (LOWER PART) - R.R.

Op. 1032B10 TOOTHED TIMING BELT - R + R FOR TIMING ADJUSTMENT OR REPLACEMENT

Op. 1032B40 TOOTHED DRIVEN PULLEY (ONE) - R + R WITH TIMING BELT REMOVED

Op. 1016A20 SINGLE TAPPET COVER - R.R. AND REPLACE GASKET

Op. 3330D30 VACUUM UNIT - R+R

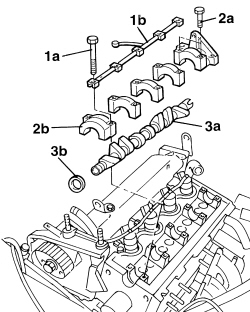

1. Undo bolts (1a) and remove camshaft journal lubrication pipe (1b).

2. Undo bolts (2a) and remove camshaft caps (2b).

3. Remove camshaft (3a) complete with oil sealing ring (3b).

Refitting

- Fit the camshaft in its housing in the cylinder head.

- Place the camshaft caps in their housings.

- Place the camshaft journal lubrication pipe in its housing.

- Tighten the bolts fixing the camshaft caps to the recommended torque.

1. Fit a new oil seal (1b) on camshaft using tool (1a).
