Courtesy lights - wiring diagram

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Interior lighting › Courtesy lights - wiring diagram

Wiring diagrams and electrical functionsCourtesy lights - wiring diagram

COURTESY LIGHTS - WIRING DIAGRAM

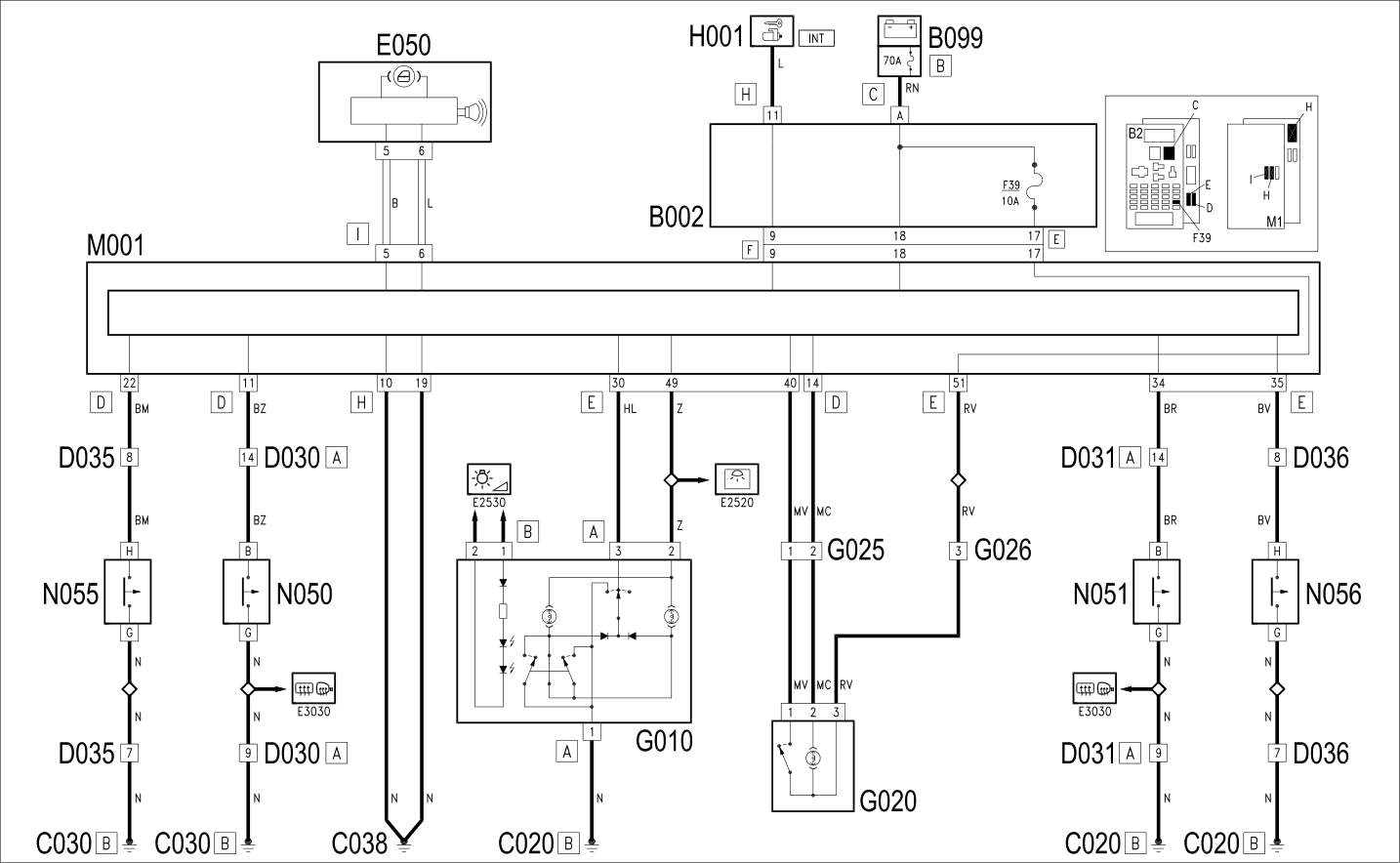

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E10 FRONT COURTESY LIGHT - R+R
G025	LEFT REAR COURTESY LIGHT	Op. 7040E14 L/H OR R/H SIDE COURTESY LIGHT (ONE) - R+R
G026	RIGHT REAR COURTESY LIGHT	Op. 7040E14 L/H OR R/H SIDE COURTESY LIGHT (ONE) - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED

POWERED SUNROOF

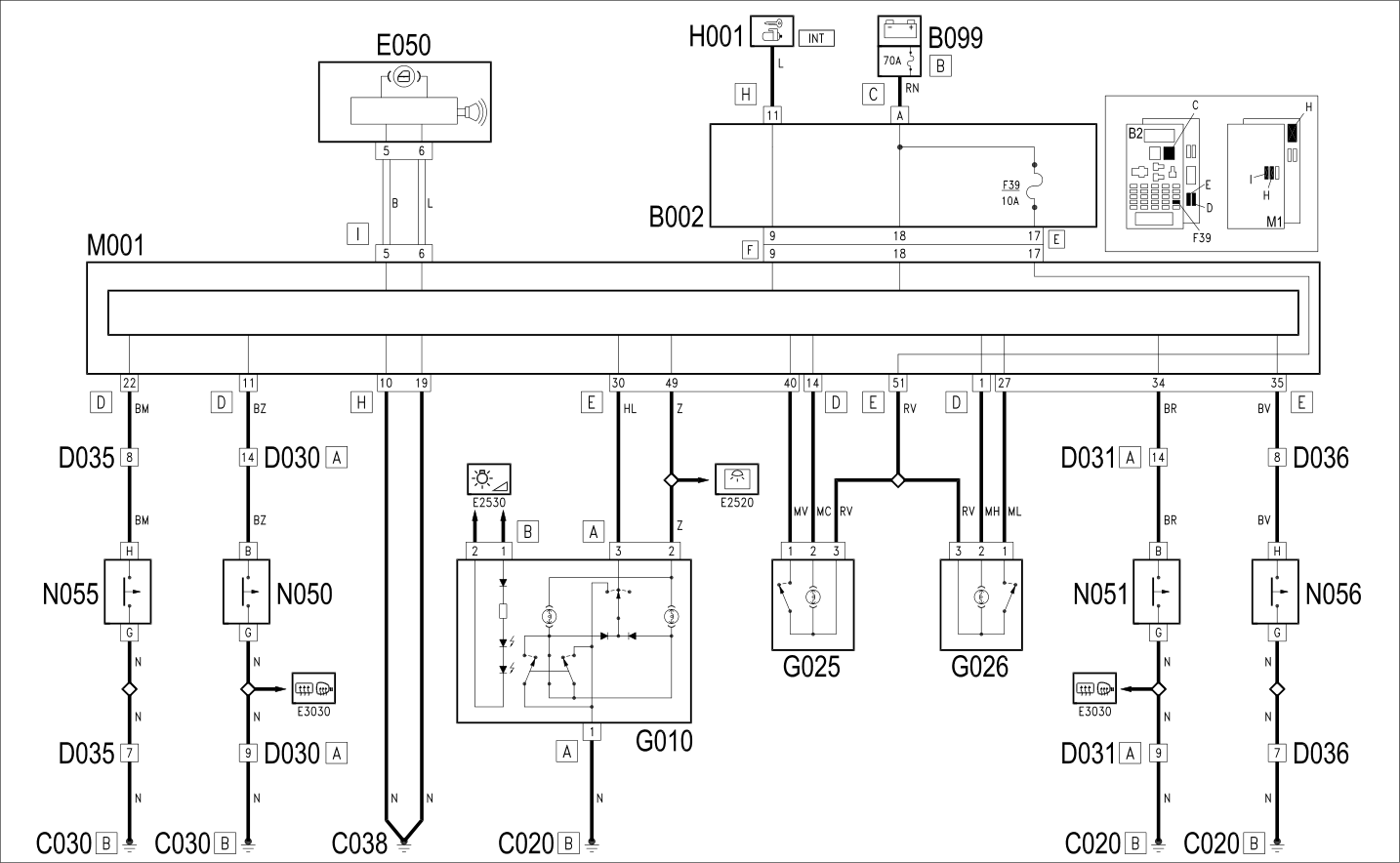

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E10 FRONT COURTESY LIGHT - R+R
G020	REAR (CENTRE) COURTESY LIGHT	Op. 7040E12 CENTRE COURTESY LIGHT - R+R
G025	LEFT REAR COURTESY LIGHT	Op. 7040E12 CENTRE COURTESY LIGHT - R+R
G026	RIGHT REAR COURTESY LIGHT	Op. 7040E12 CENTRE COURTESY LIGHT - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
