Controls lighting - wiring diagram

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Interior lighting › Controls lighting - wiring diagram

Wiring diagrams and electrical functionsControls lighting - wiring diagram

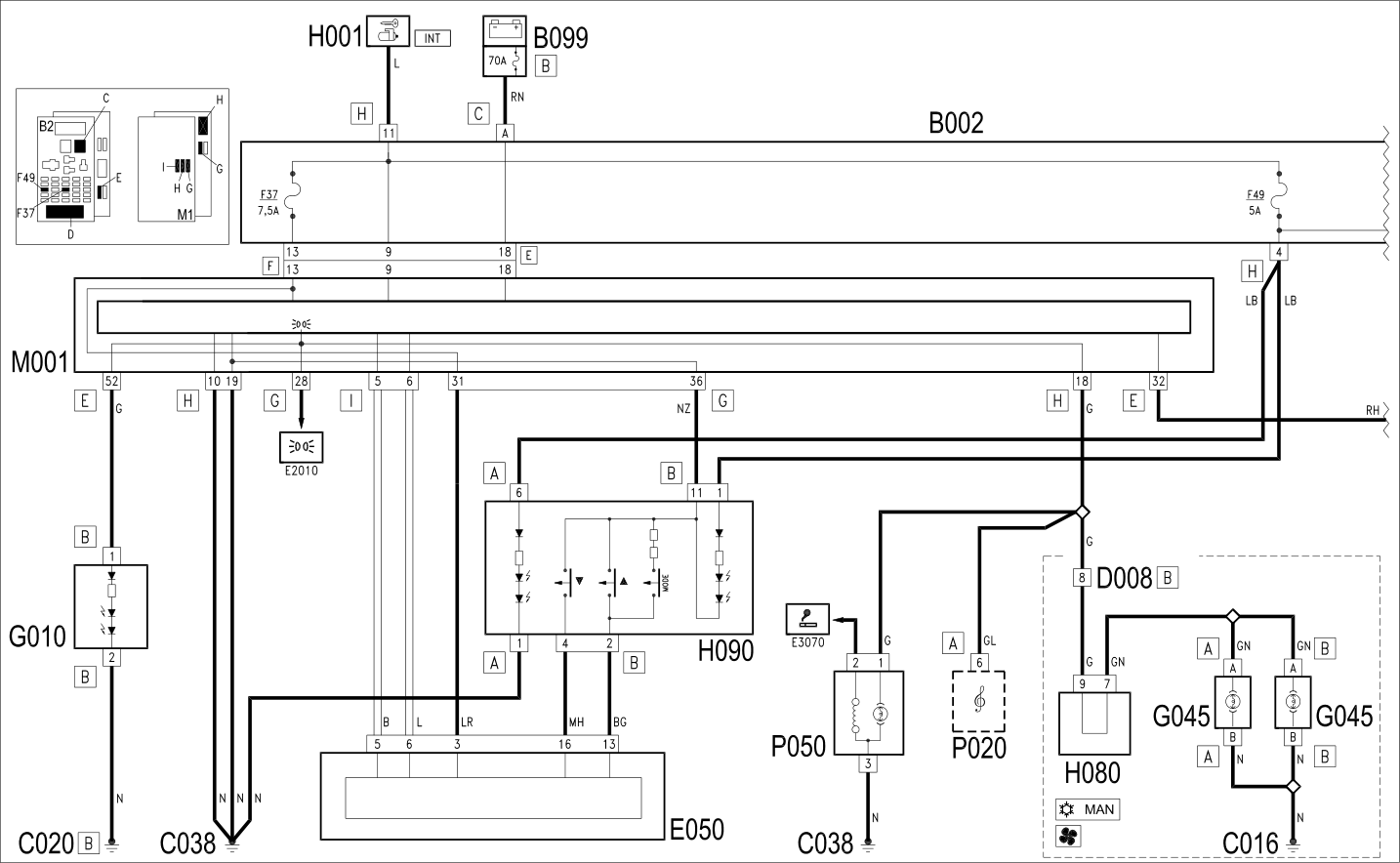

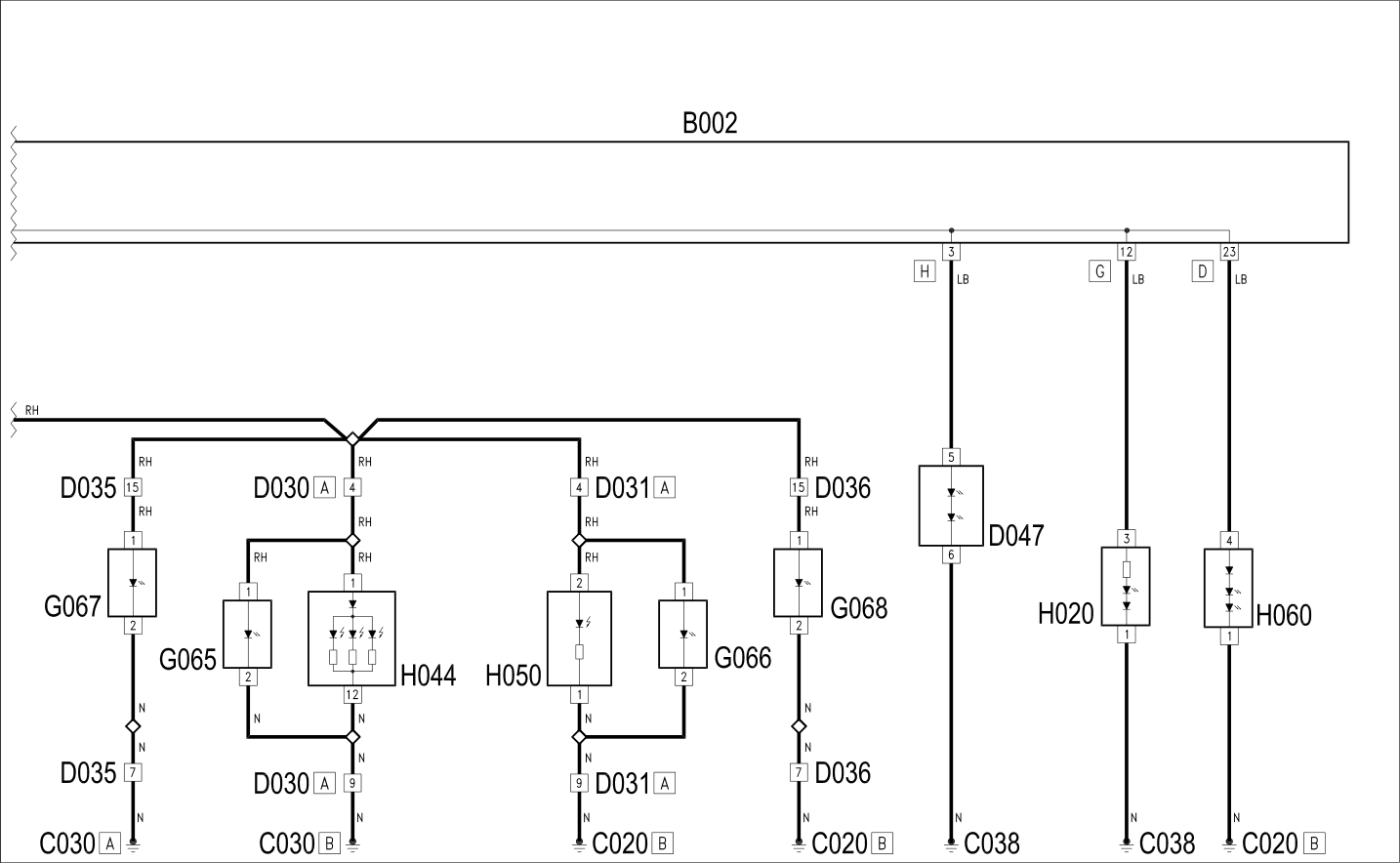

CONTROLS LIGHTING - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
D008	AIR CONDITIONING-HEATER FRONT COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E10 FRONT COURTESY LIGHT - R+R
G045	AIR CONDITIONING/HEATER CONTROLS LIGHT	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
G065	DRIVER'S FRONT DOOR HANDLE LIGHT	Op. 7040E36 FRONT SIDE DOOR INTERIOR OPENING HANDLE LIGHT BULB (ONE), LEFT OR RIGHT - R.R.
G066	PASSENGER FRONT DOOR HANDLE LIGHT	Op. 7040E36 FRONT SIDE DOOR INTERIOR OPENING HANDLE LIGHT BULB (ONE), LEFT OR RIGHT - R.R.
G067	LEFT REAR DOOR HANDLE LIGHT	Op. 7040E37 REAR SIDE DOOR INTERIOR OPENING HANDLE LIGHT BULB (ONE), LEFT OR RIGHT - R.R.
G068	RIGHT REAR DOOR HANDLE LIGHT	Op. 7040E37 REAR SIDE DOOR INTERIOR OPENING HANDLE LIGHT BULB (ONE), LEFT OR RIGHT - R.R.
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H020	HAZARD WARNING LIGHTS SWITCH	Op. 5550C14 HAZARD WARNING LIGHT SWITCH - R+R
H044	ELECTRIC WINDOW CONTROLS ON FRONT DRIVER'S DOOR	Op. 7005M15 DRIVE SIDE FRONT DOOR ELECTRIC WINDOWS AND DOOR MIRRORS CONTROL SWITCHES - R.R.
H050	ELECTRIC WINDOW SWITCH ON FRONT PASSENGER'S DOOR	Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R.
H060	SUN ROOF SWITCH	Op. 7030B64 SUN ROOF CONTROL SWITCH - R+R
H080	AIR CONDITIONING CONTROLS	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P050	CIGAR LIGHTER/CURRENT SOCKET	Op. 7065C72 FRONT CIGAR LIGHTER SOCKET - R.R.
