BRAKE FLUID MINIMUM W/L SWITCH - R + R

Operation 3330C44 · BRAKE PUMP, RESERVOIR AND LOAD PROPORTIONING VALVE

Removing

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

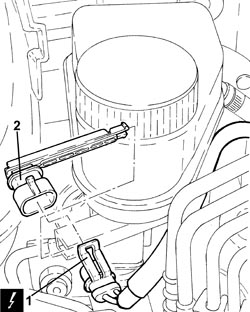

1. Disconnect the electrical connection from the brake fluid minimum level warning light switch.

2. Adjust the clip and remove the minimum brake fluid level warning light switch.

Refitting

- Place the minimum brake fluid level warning light switch in its housing.

Make sure that the fastening clip is attached.

- Connect the electrical connection to the brake fluid minimum level warning light switch.

- Connect the negative battery terminal.

2.2, 1.9 JTD 16v, 2.4 JTD 20v

Removing

- Position the vehicle on a lift.

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 3330C12 MASTER CYLINDER (PUMP) - R.R. FOR RIGHT HAND DRIVE VERSIONS

1. Expand the fastening tabs, then release the minimum brake fluid warning light switch and remove it.

Refitting

- Place the minimum brake fluid warning light switch back in its housing until the fastening tabs are attached.

Op. 3330C12 MASTER CYLINDER (PUMP) - R.R. FOR RIGHT HAND DRIVE VERSIONS

Op. 0010T64 BRAKE AND/OR CLUTCH FLUID CHECK LEVEL AND TOP UP AS NECESSARY

Op. 0010T65 HYDRAULIC BRAKE SYSTEM - BLEED AIR

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

- Connect the negative battery terminal.

- Remove the vehicle from the lift.
