BRAKE FLUID RESERVOIR - R + R AND WASH INSIDE

Operation 3330C30 · BRAKE PUMP, RESERVOIR AND LOAD PROPORTIONING VALVE

Removing

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

Op. 4450B02 LEFT FRONT WHEEL - R.R

1. Remove the protective cap from the bleed valve on the brake caliper.

2. Connect the recovery device (pipe and reservoir) to the brake caliper bleed valve.

3. Loosen the bleed valve on the brake caliper and wait until the brake-clutch reservoir and pipes drains.

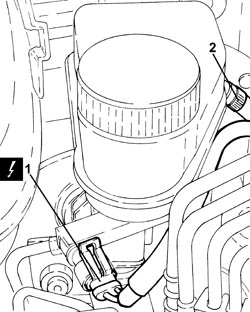

1. Disconnect the electrical connection from the brake fluid minimum level warning light switch.

2. Loosen the band and disconnect the flexible pipe from the clutch fluid reservoir to the electro-hydraulic clutch assembly, reservoir side.

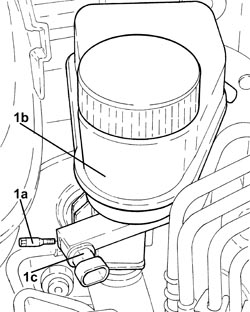

1. Undo the bolt (1a) and remove the brake-clutch fluid reservoir (1b) complete with minimum fluid level warning light switch (1c).

- Remove the seals on the brake master cylinder using a suitable tool.

Refitting

- Clean the sealing surfaces of the brake master cylinder and the brake-clutch fluid reservoir.

Do not use mineral oils or grease.

- Place the new seals in their housings on the brake master cylinder checking that they are correctly positioned.

- Place the brake-clutch fluid reservoir in its housing complete with minimum fluid level warning light switch and secure it using the bolt.

- Connect the flexible pipe from the clutch fluid reservoir to the electro-hydraulic clutch assembly, reservoir side and tighten the band.

- Connect the electrical connection to the brake fluid minimum level warning light switch.

- Connect the negative battery terminal.

Op. 0010T64 BRAKE AND/OR CLUTCH FLUID CHECK LEVEL AND TOP UP AS NECESSARY

Op. 0010T65 HYDRAULIC BRAKE SYSTEM - BLEED AIR

Op. 4450B02 LEFT FRONT WHEEL - R.R
