PEDAL ASSEMBLY - R.R

Operation 3330B02 · PEDAL UNIT

1.8, 2.2, 1.9 JTD 8v, 1.9 JTD 16v

Removing

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

(Both).

Op. 7040L28 TUNNEL SWITCH PANEL - R R

Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R

Op. 7040L20 TUNNEL COVER - R.R

Op. 5570T85 CD/AUDIO PLAYER LOADER - R R

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

Op. 5010C55 RIGHT LOWER AIR DIFFUSER - R+R

Op. 7040A58 INSTRUMENT PANEL MOULDING - R+R

Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

Follow all the recommended safety instructions (see 5580C - Precautions).

Op. 5580P12 CONNECT PANEL REPLACE

Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.

Op. 7040A85 R R HANDLE FOR FRONT SEAT FORE AND AFT ADJUSTMENT

Op. 5040D18 AIR CONDITIONING CONTROL UNIT - R.R.

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 7040A24 LOWER FACIA COVER TRIM - R+R

Op. 5010C57 LEFT LOWER AIR DIFFUSER - R R

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

Follow all the recommended safety instructions (see 5580C - Precautions).

Op. 7040A30 LEFT LOWER DASHBOARD TRIM - R.R.

Op. 5580C18 AIR BAG MODULE - R+R

Follow all the recommended safety instructions (see 5580C - Precautions).

Op. 5560B10 CONTROL PANEL - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

(for versions without ESP)

Op. 7040A60 UNDERDASHBOARD TRIM - R.R.

Op. 7040A82 SWITCH UNIT ON LEFT SIDE OF DASHBOARD - R.R.

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Op. 5010C12 WINDSCREEN DEMISTER DIFFUSER - R+R

Op. 5010C14 TOP OUTLET (ONE) ON FASCIA - R+R

Op. 5010C30 CENTRAL AIR VENT IN DASHBOARD - R.R.

1. Undo the bolts fixing the brake servo to the pedal assembly.

1. Undo the clip (1a) and release master cylinder pushrod (1b) from the clutch pedal.

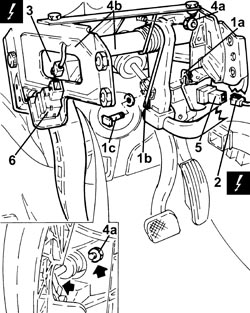

1. Remove the retaining clip (1a), release the return spring (1b) and extract the pin (1c) connecting the brake servo to the brake pedal.

2. Disconnect the electrical connection from the brake pedal switch.

3. Disconnect the electrical connection from the clutch pedal switch.

4. Undo the nuts (4a) and remove the pedal assembly (4b).

5. Remove the brake pedal switch from the pedal assembly.

6. Remove the clutch pedal switch from the pedal assembly.

1. Undo the bolts (1a) and separate the support (1b) from the pedal assembly (1c).

The brake and clutch pedals cannot be dismantled from the pedal assembly.

Refitting

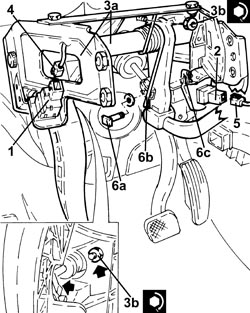

1. Assemble the support (1a) and the pedal assembly (1b) and tighten the bolts (1c) to the recommended torque.

1. Place the clutch pedal switch in its housing in the pedal assembly.

2. Place the brake pedal switch in its housing in the pedal assembly.

3. Position the pedal assembly (3a) in its housing and secure it by tightening the nuts (3b) to the recommended torque.

4. Connect the electrical connection to the clutch pedal switch.

5. Connect the electrical connection to the brake pedal switch.

6. Place the pin (6a) connecting the brake servo to the brake pedal, connect the return spring (6b) and fit the retaining clip (6c).

- Connect the master cylinder pushrod to the clutch pedal and secure with a clip.

1. Tighten the bolts fixing the brake servo to the pedal assembly to the recommended torque.

Op. 5010C30 CENTRAL AIR VENT IN DASHBOARD - R.R.

Op. 5010C14 TOP OUTLET (ONE) ON FASCIA - R+R

Op. 5010C12 WINDSCREEN DEMISTER DIFFUSER - R+R

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Op. 7040A82 SWITCH UNIT ON LEFT SIDE OF DASHBOARD - R.R.

Op. 7040A60 UNDERDASHBOARD TRIM - R.R.

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

(for versions without ESP)

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5560B10 CONTROL PANEL - R+R

Op. 5580C18 AIR BAG MODULE - R+R

Op. 7040A30 LEFT LOWER DASHBOARD TRIM - R.R.

Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 5010C57 LEFT LOWER AIR DIFFUSER - R R

Op. 7040A24 LOWER FACIA COVER TRIM - R+R

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 5040D18 AIR CONDITIONING CONTROL UNIT - R.R.

Op. 7040A85 R R HANDLE FOR FRONT SEAT FORE AND AFT ADJUSTMENT

Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.

Op. 5580P12 CONNECT PANEL REPLACE

Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

Op. 7040A58 INSTRUMENT PANEL MOULDING - R+R

Op. 5010C55 RIGHT LOWER AIR DIFFUSER - R+R

Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 5570T85 CD/AUDIO PLAYER LOADER - R R

Op. 7040L20 TUNNEL COVER - R.R

Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R

Op. 7040L28 TUNNEL SWITCH PANEL - R R

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

(Both).
