ADDITIONAL HEATER - COMPONENT LOCATION

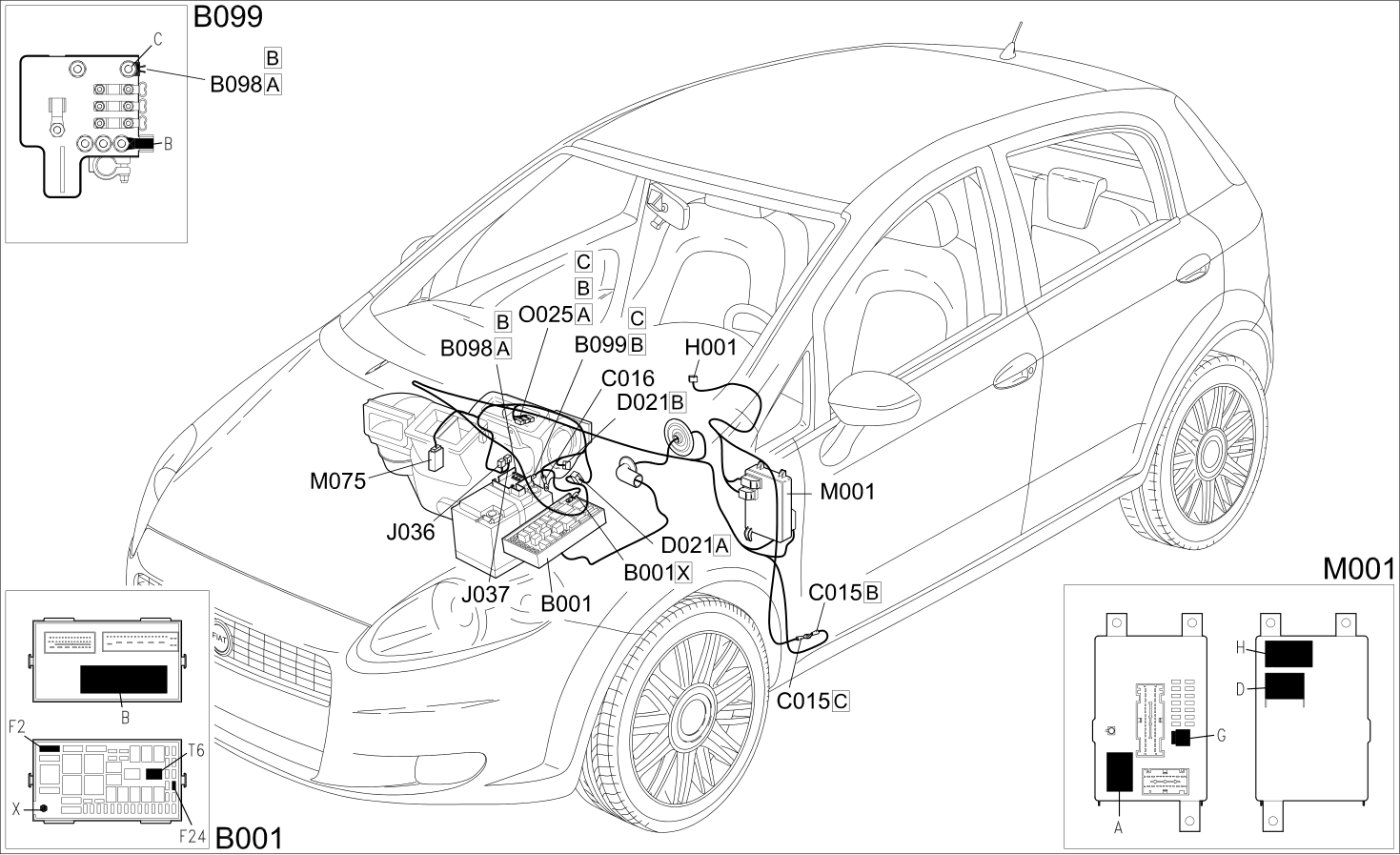

Automatic air conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B098	SUPPLEMENTARY FUSE BOX
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
J036	ADDITIONAL HEATER RELAY - 1
J037	ADDITIONAL HEATER RELAY -2
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M075	ADDITIONAL HEATER CONTROL UNIT	Op. 5020E61 CONTROL UNIT FOR ADDITIONAL HEATER P.T.C. - R.R.
O025	ADDITIONAL HEATER RESISTANCE	Op. 5020E60 ADDITIONAL HEATER P.T.C. - R.R.

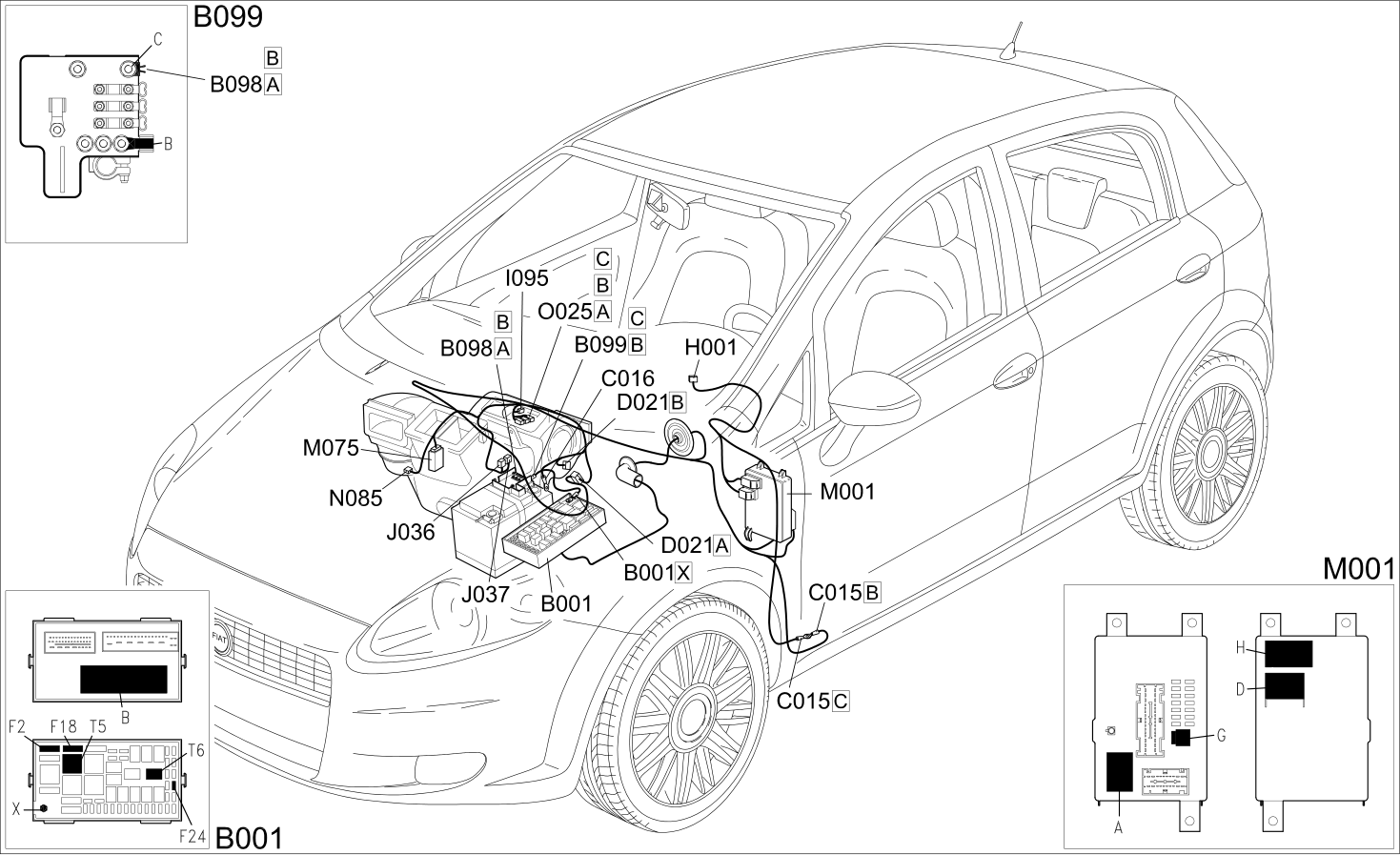

Manual air conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B098	SUPPLEMENTARY FUSE BOX
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
I95	ADDITIONAL HEATER SAFETY SWITCH
J036	ADDITIONAL HEATER RELAY - 1
J037	ADDITIONAL HEATER RELAY -2
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M075	ADDITIONAL HEATER CONTROL UNIT	Op. 5020E61 CONTROL UNIT FOR ADDITIONAL HEATER P.T.C. - R.R.
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O025	ADDITIONAL HEATER RESISTANCE	Op. 5020E60 ADDITIONAL HEATER P.T.C. - R.R.
