Heater - wiring diagram

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Climate control system › Heater - wiring diagram

Wiring diagrams and electrical functionsHeater - wiring diagram

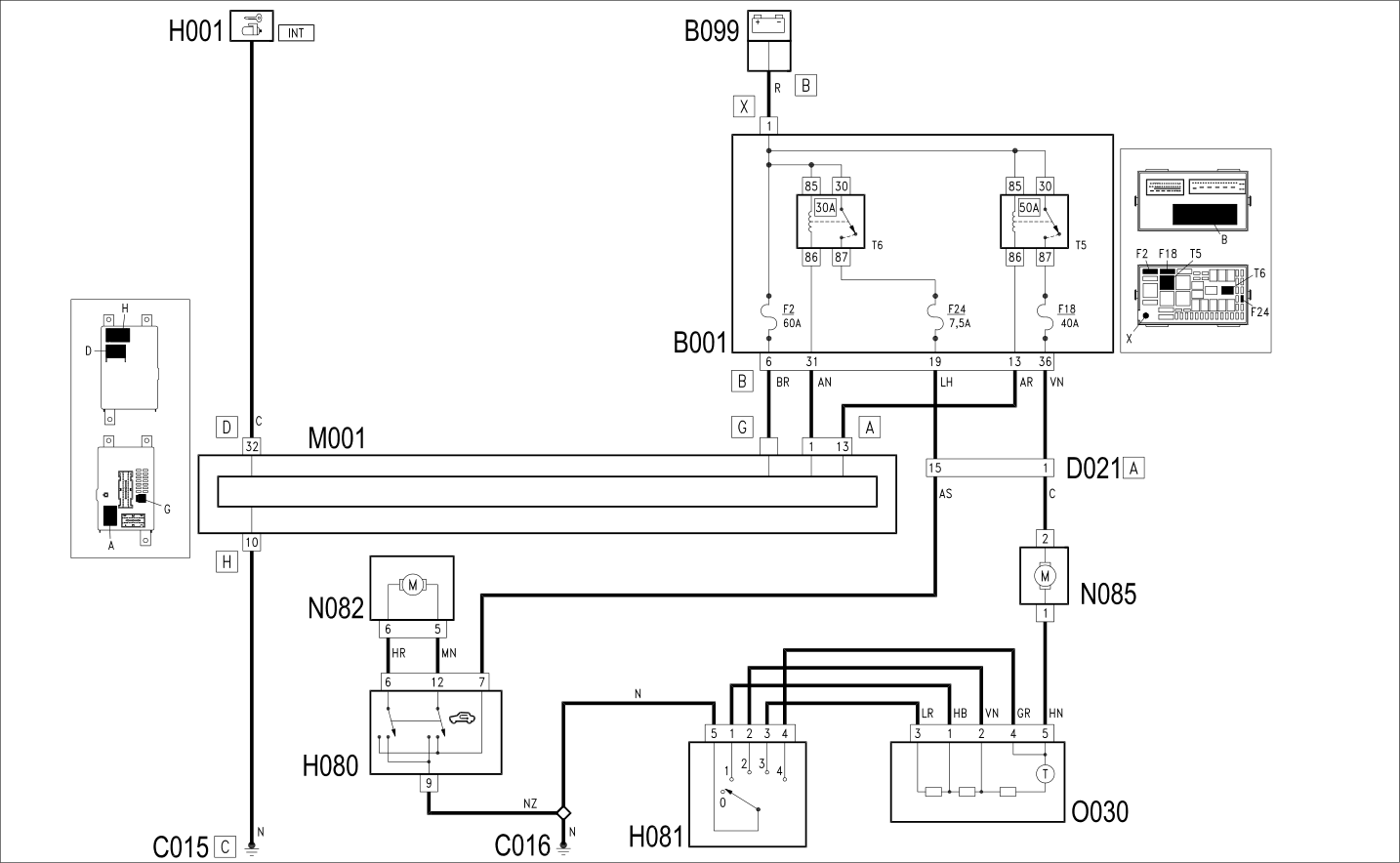

HEATER - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
H80	AIR CONDITIONING CONTROLS	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
H081	CLIMATE CONTROL FAN CONTROL	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O030	PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	Op. 5040C48 A/C FAN MOTOR RESISTOR - R+R -
