AIR CONDITIONER - COMPONENT LOCATION

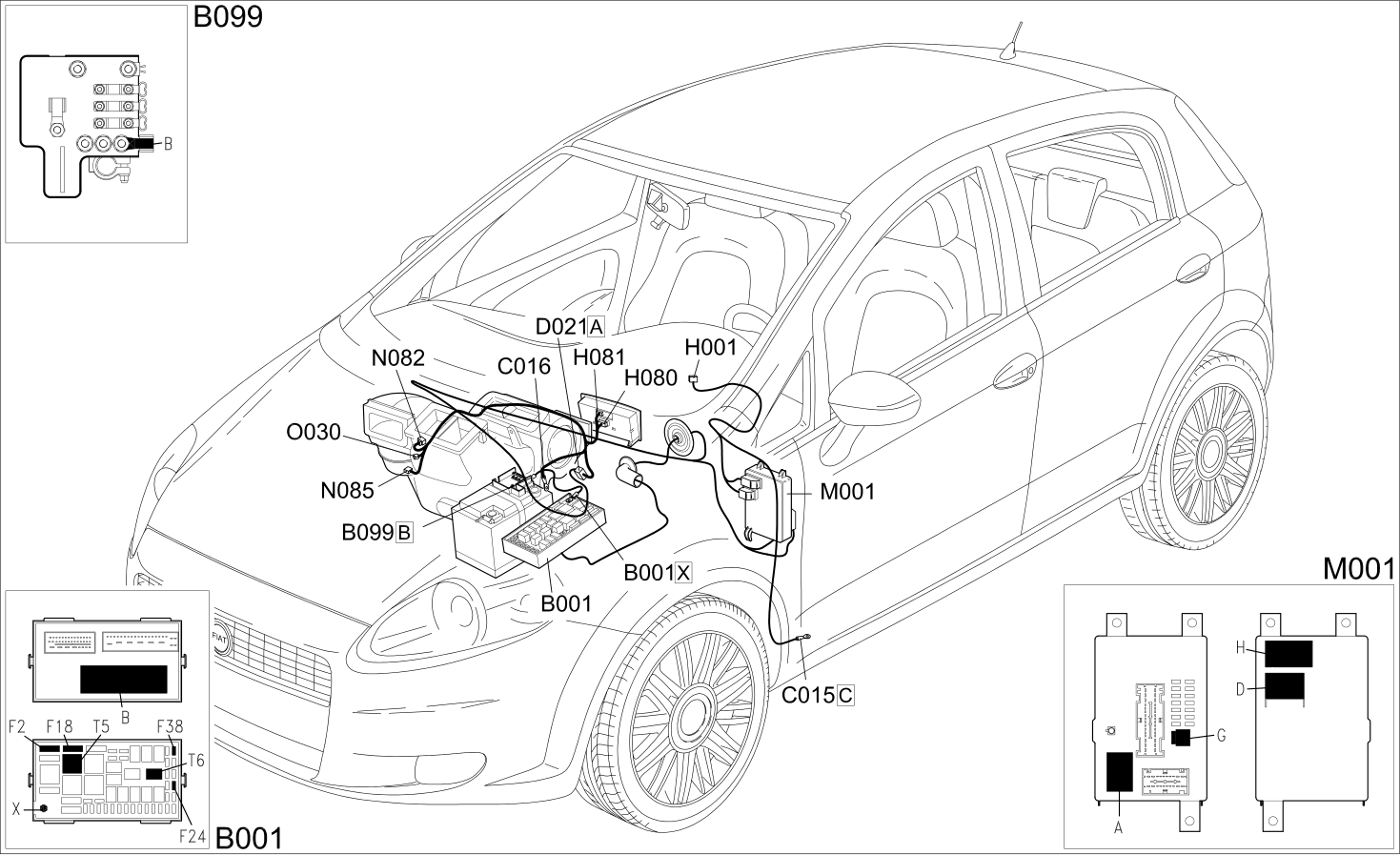

Manual air conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
H80	AIR CONDITIONING CONTROLS	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
H081	CLIMATE CONTROL FAN CONTROL	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O030	PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR	Op. 5040C48 A/C FAN MOTOR RESISTOR - R+R -

Automatic air conditioning

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
D031	PASSENGER FRONT DOOR COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
K090	SOLAR SENSOR	Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK
K110	RIGHT UPPER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D33 RH UPPER MIXED AIR TEMPERATURE SENSOR - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
K111	RIGHT LOWER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D35 RH LOWER MIXED AIR TEMPERATURE SENSOR R.R FOLLOWING ELECTRICAL CIRCUIT CHECK
K112	LEFT UPPER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D32 LH UPPER MIXED AIR TEMPERATURE SENSOR - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
K113	LEFT LOWER AIR DISTRIBUTION TEMPERATURE SENSOR	Op. 5010D34 LH LOWER MIXED AIR TEMPERATURE SENSOR R.R FOLLOWING ELECTRICAL CIRCUIT CHECK
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D14 CONTROL UNIT WITH AUTOMATIC AIR CONDITIONING CONTROL PANEL - R.R.
M072	FAN SPEED VARIATOR	Op. 5040C44 FAN MOTOR ELECTRONIC VARIATOR - R+R
N078	LEFT MIXED AIR FLAP ACTUATOR	Op. 5040D84 AIR CONDITIONING LEFT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N079	RIGHT MIXED AIR FLAP ACTUATOR	Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
N112	RIGHT AIR DISTRIBUTION ACTUATOR	Op. 5040D96 AIR CONDITIONING RIGHT UPPER DISTRIBUTION FLAP MOTOR (DEFROST) - R.R
N113	LEFT AIR DISTRIBUTION ACTUATOR	Op. 5040D94 AIR CONDITIONING LEFT UPPER AIR DISTRIBUTION FLAP MOTOR (DEFROST) - R.R
P061	RIGHT EXTERNAL REAR VIEW MIRROR	Op. 7005R30 ELECTRICALLY CONTROLLED DOOR MIRROR (ONE) - R+R
