Sun roof - wiring diagram

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Electrically activated devices › Sun roof - wiring diagram

Wiring diagrams and electrical functionsSun roof - wiring diagram

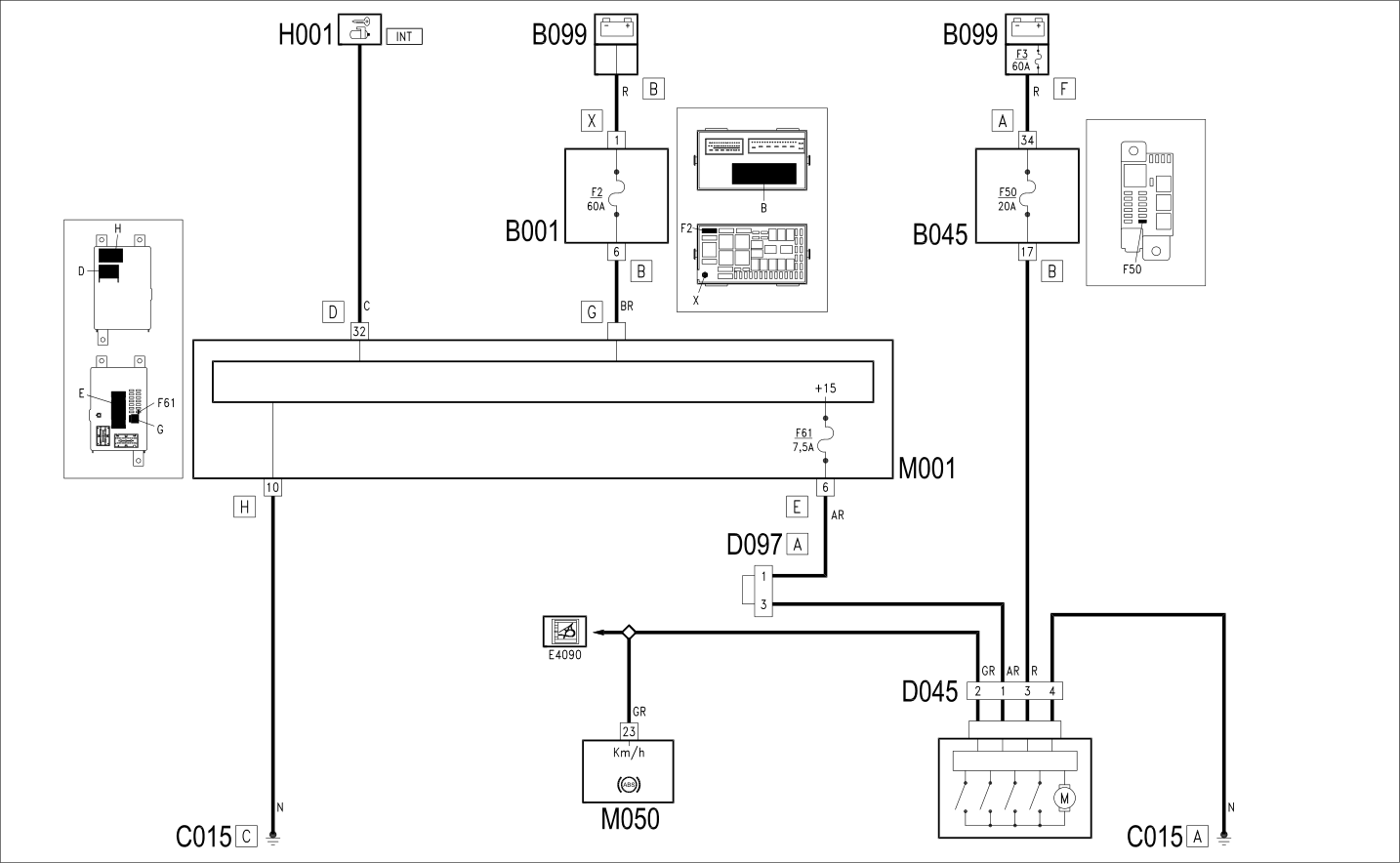

SUN ROOF - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B045	LUGGAGE COMPARTMENT JUNCTION UNIT (CVB)	Op. 5505A14 SUPPLEMENTARY JUNCTION BOX IN LUGGAGE COMPARTMENT - R.R
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
D045	SUN ROOF COUPLING
D097	SHORT CIRCUITING COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
