Scudo
2004 Update

General Information

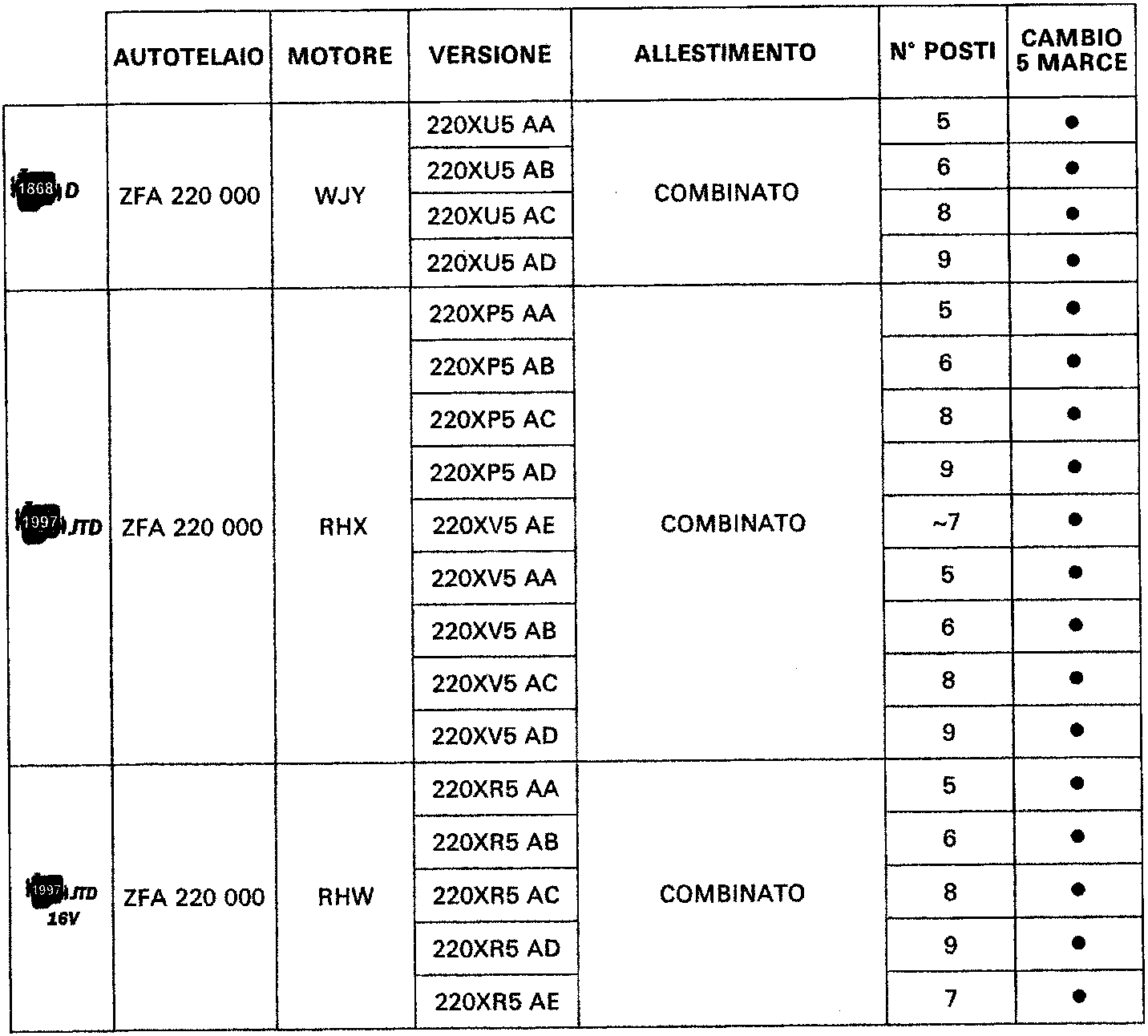

Identification Data

	CHASSIS	ENGINE	VERSION	TRIM	NO. SEATS	5-SPEED GEARBOX
[1868] D	ZFA 220 000	WJY	220XU5 AA	COMBI	5	●
			220XU5 AB		6	●
			220XU5 AC		8	●
			220XU5 AD		9	●
[1997] JTD	ZFA 220 000	RHX	220XP5 AA	COMBI	5	●
			220XP5 AB		6	●
			220XP5 AC		8	●
			220XP5 AD		9	●
			220XV5 AE		~7	●
			220XV5 AA		5	●
			220XV5 AB		6	●
			220XV5 AC		8	●
			220XV5 AD		9	●
[1997] JTD 16V	ZFA 220 000	RHW	220XR5 AA	COMBI	5	●
			220XR5 AB		6	●
			220XR5 AC		8	●
			220XR5 AD		9	●
			220XR5 AE		7	●
