Fiat Scudo Factory Service Manual (1996-2006)01 · 00 Introduction and technical data
01 · General

Introduction (2004 range) (page 5 of 7)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Introduction (2004 range)
00 Introduction and technical dataIntroduction (2004 range) · page 5 of 7

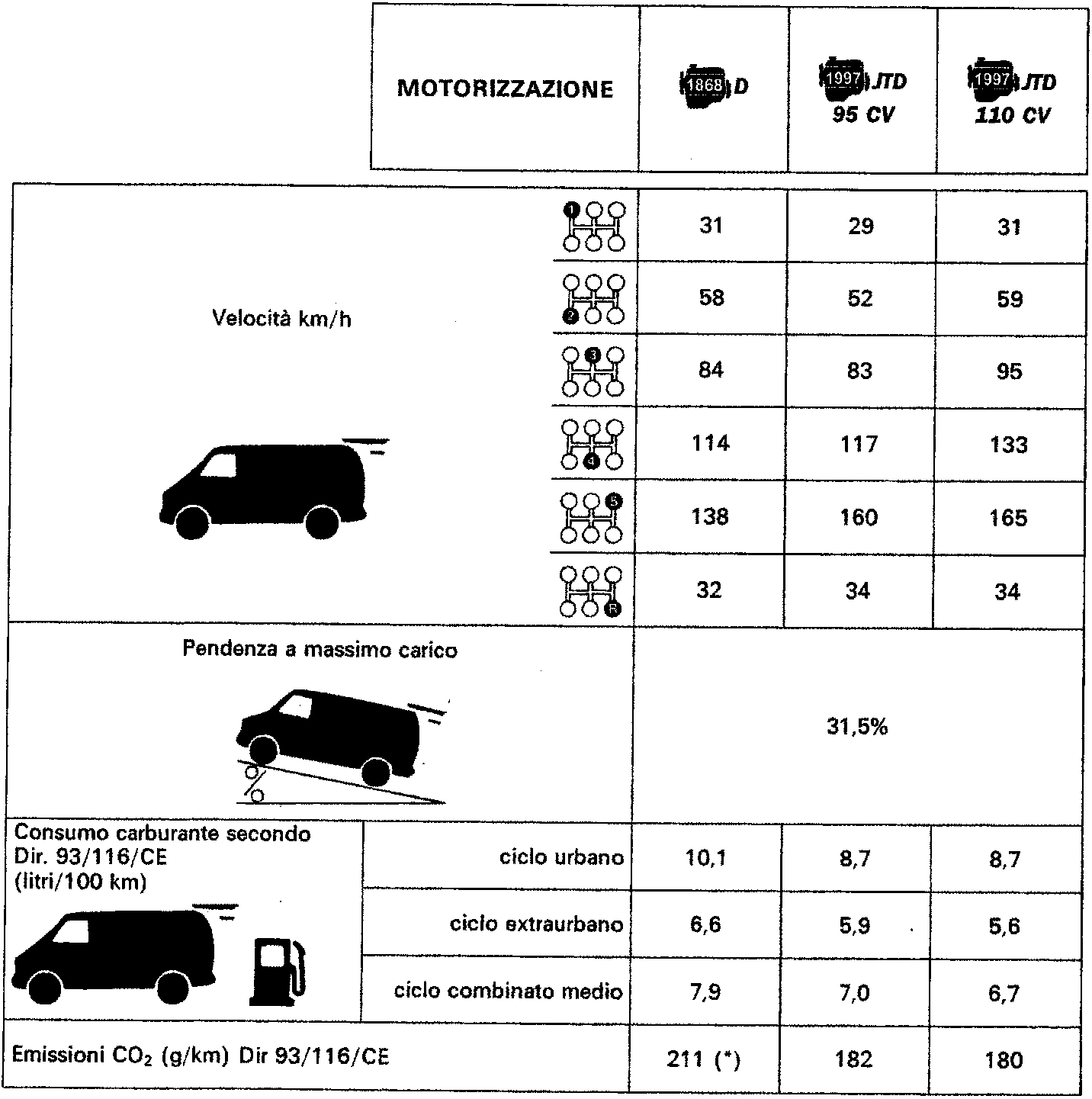

Table of vehicle performance and fuel consumption specifications for different engine types

(*) Mountain routes: +10 ÷ 15%.

The fuel consumption figures shown in the table were determined during official tests and according to procedures established by EEC legal standards. These values can provide useful indications for comparison between different vehicles. In practice, traffic conditions, driving style, weather conditions and the general condition of the vehicle may result in fuel consumption figures that differ from those established by the aforementioned legislative procedures.
