Introduction (2004 range) (page 3 of 7)

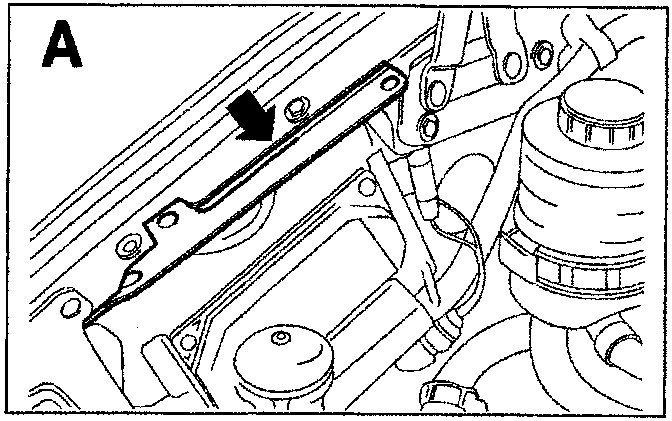

A. Vehicle type identification code and chassis number.
Stamped in the engine compartment on the double flange of the upper fold of the right-hand front wing.

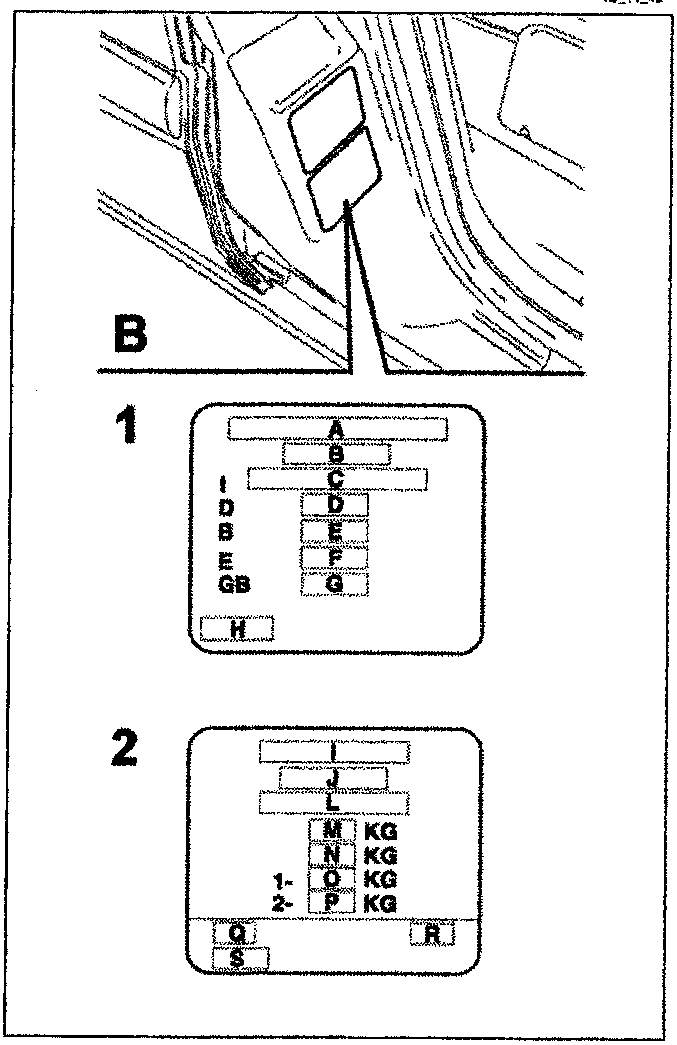

B. Summary marking plates (E.E.C. regulations).
The plates are fitted to the right-hand front door aperture; they show the following details:

Plate 1 (Combi version excluded)
A. Manufacturer's name.
B. Vehicle type/version identification code.
C. Italian approval.
D. German approval.
E. Belgian approval.
F. Spanish approval.
G. British approval.
H. Serial manufacturing number.

Plate 2
I. Manufacturer's name.
J. National approval number (Combi versions only).
L. Vehicle type identification code and chassis number.
M. Maximum authorised laden vehicle weight.
N. Maximum authorised laden vehicle weight plus trailer.
O. Maximum authorised weight on the first axle (front).
P. Maximum authorised weight on the second axle.
Q. Vehicle type identification code.
R. Correct smoke absorption coefficient value (for diesel engines).
S. Serial manufacturing number.
