00 Introduction and technical dataIntroduction (2004 range) · page 6 of 7
(*) Mountain routes: +10 ÷ 15%.
The fuel consumption figures shown in the table were determined during official tests and according to procedures established by EEC legal standards. These values can provide useful indications for comparison between different vehicles. In practice, traffic conditions, driving style, weather conditions and the general condition of the vehicle may result in fuel consumption figures different from those established by the above legislative procedures.
| ENGINE TYPES | 1997 JTD 16v | |
|---|---|---|
| COMBINED | ||
| Speed km/h | 1st | 31 |
| 2nd | 59 | |
| 3rd | 95 | |
| 4th | 133 | |
| 5th | 165 | |
| 34 | ||
| Gradient at maximum load | 31,5% | |
| Fuel consumption according to Dir. 93/116/CE (litres/100 km) |
urban cycle | 8,9 |
| extra-urban cycle | 6,0 | |
| average combined cycle | 7,0 | |
| CO2 emissions (g/km) Dir 1999/100/CE | 186 | |

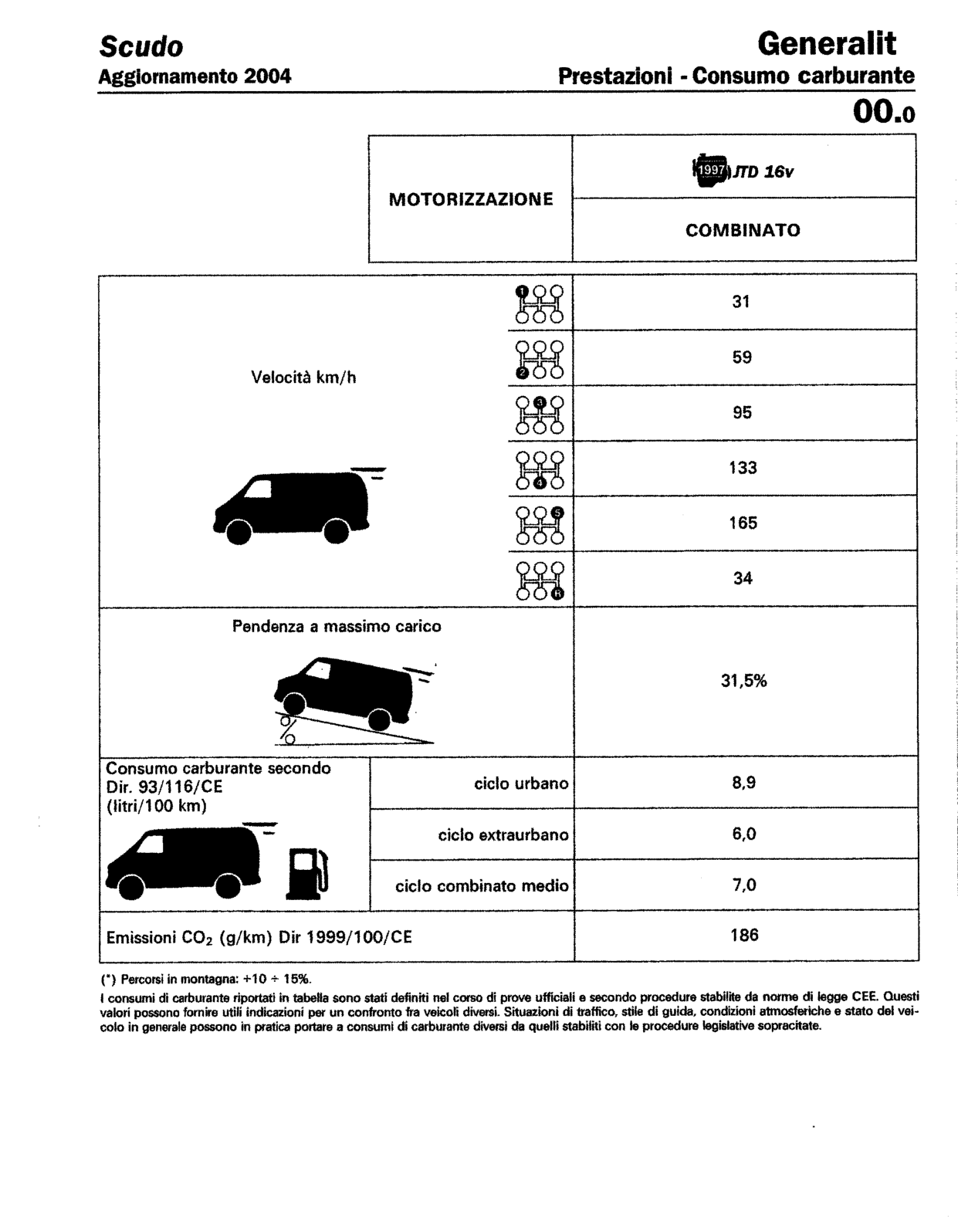

Original page
