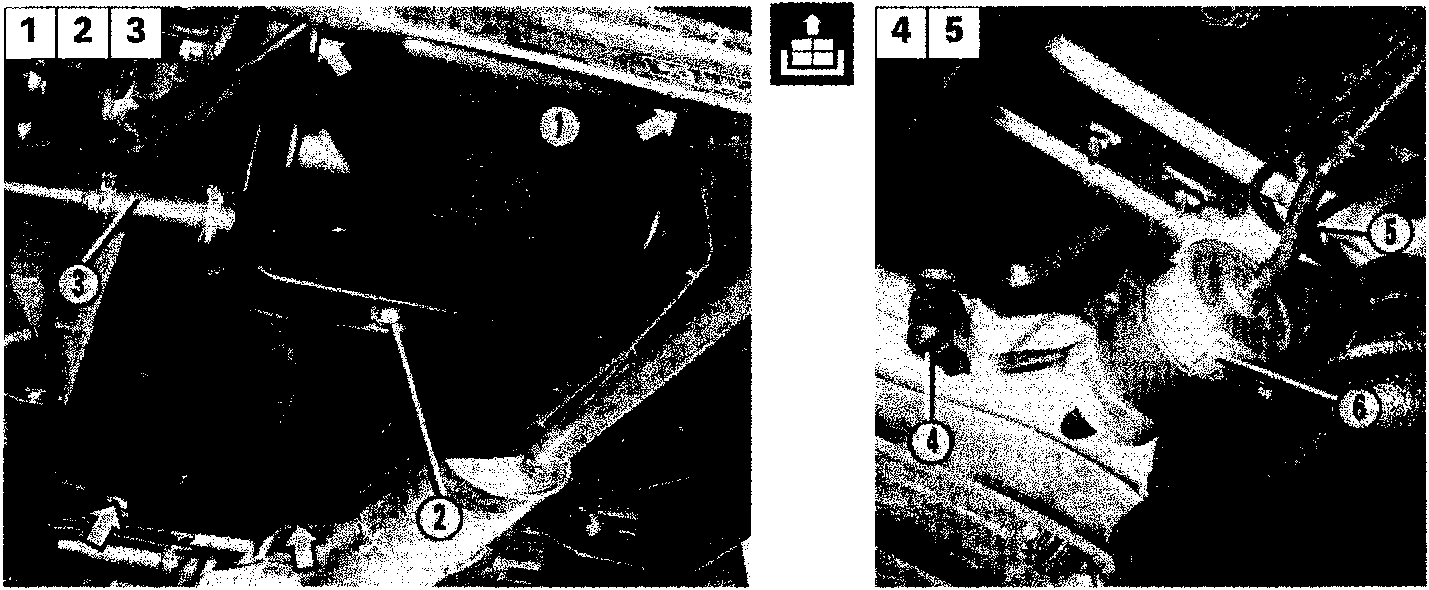

1. Raise the vehicle and drain the tank (1), undoing the cap (2) at the bottom of the tank.
2. Remove the hose (3) connecting the tank (2) to the filler.
3. Loosen the four bolts (arrow) fixing the tank to the bodyshell.
4. Remove the multiple connector (4).
5. Remove the fuel outlet pipe (5) from the filter (6).

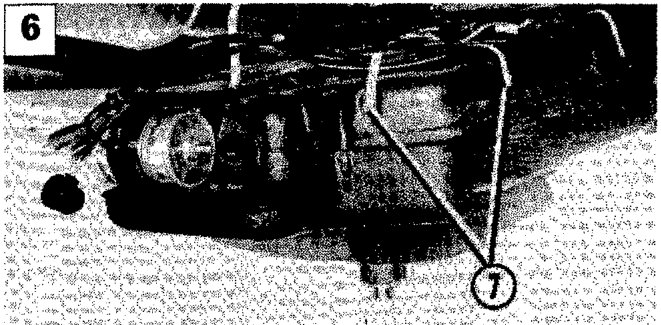

6. Suitably support the tank and remove the fixing bolts.

NOTE Take care in case any fuel still in the tank comes out.

Then, carefully lower the tank until it is possible to gain access to the pipes in the upper part.
Release all the retaining bands (7).

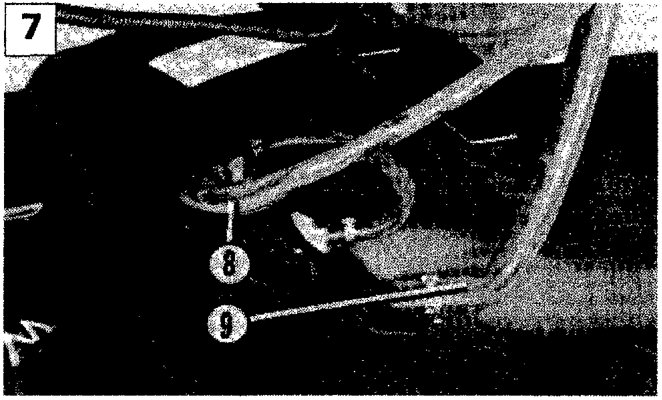

7. Disconnect the pipes (8) and (9) for the anti-evaporation system.
