02 · Engine

Air intake circuit (page 4 of 4)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Fuel system (1581 SPI Monomotronic)
10 EngineAir intake circuit · page 4 of 4

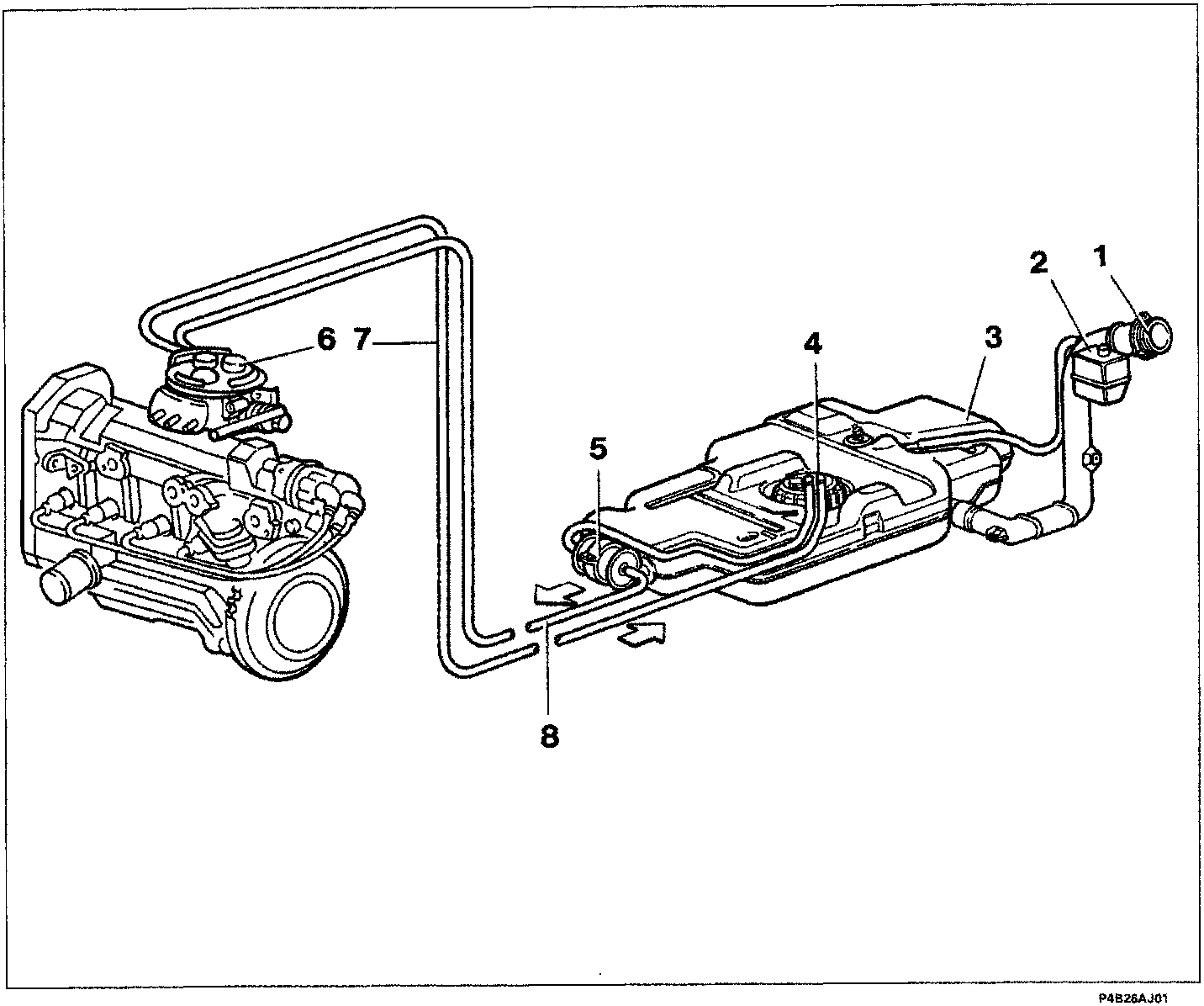

Diagram of the fuel supply circuit showing components including the fuel filler, vapour separator, tank, pump, filter, butterfly casing, and return/supply pipes

The fuel supply circuit is made up of the following components:

  1. Fuel filler
  2. Fuel vapour separator
  3. Fuel tank
  4. Immersed electric fuel pump
  5. Fuel filter
  6. Butterfly casing
  7. Fuel return pipe (to the tank)
  8. Fuel supply pipe (from the tank)
