2003 Update

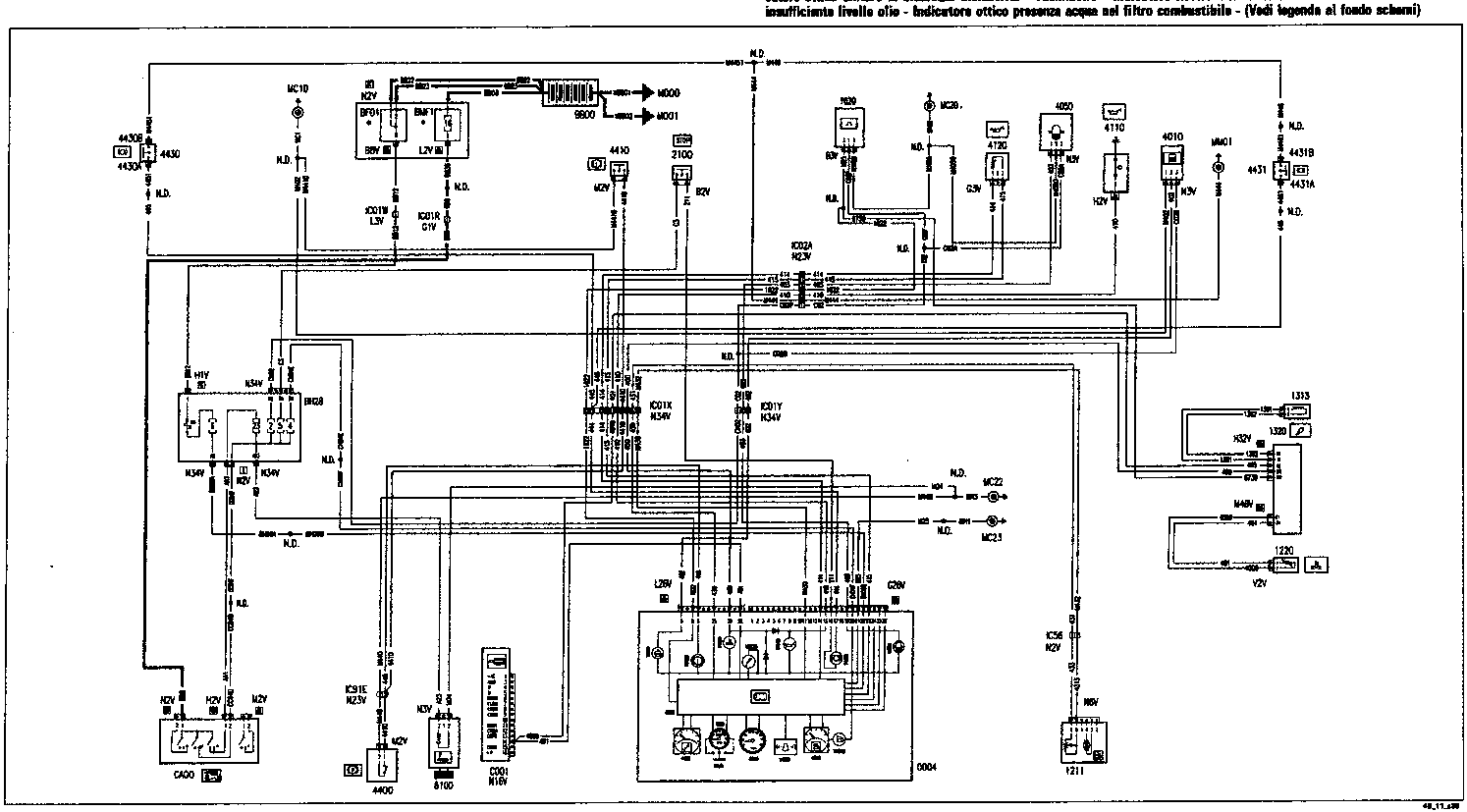

Luxe instrument panel version
Fuel level indicator and corresponding reserve optical indicator - Engine coolant temperature indicator and corresponding excessive temperature optical indicator - Optical indicator for excessive brake pad wear - Optical indicator for insufficient engine oil pressure - Optical indicator for handbrake engaged and insufficient brake fluid level - Digital clock - Cigarette lighter - Optical indicator for insufficient engine coolant level - Tachometer - Optical indicator for unfastened seat belt - Speedometer - Engine oil level indicator and corresponding low oil level optical indicator - Optical indicator for water in fuel filter - (See legend at the end of the diagrams)
