55 Electrical equipmentDiagnostic socket connections

Diagnostic socket connections

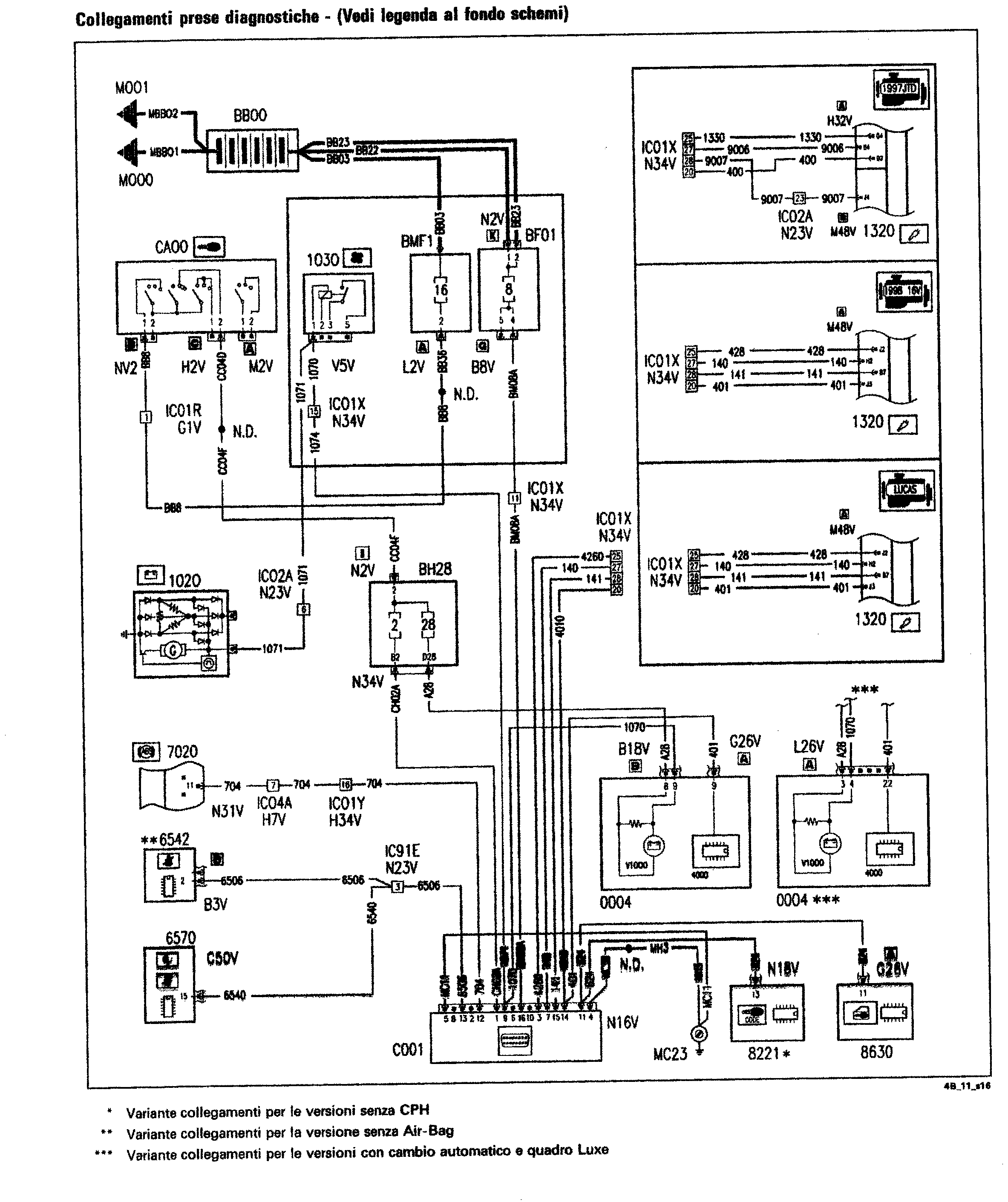

Fiat Scudo wiring diagram: 55 ELECTRICAL EQUIPMENT – Wiring diagrams (2003 update)

* Connection variant for versions without CPH ** Connection variant for the version without Air-Bag *** Connection variant for versions with automatic transmission and Luxe dashboard
