Front electric window lifters
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2003 update) › Front electric window lifters
55 Electrical equipmentFront electric window lifters

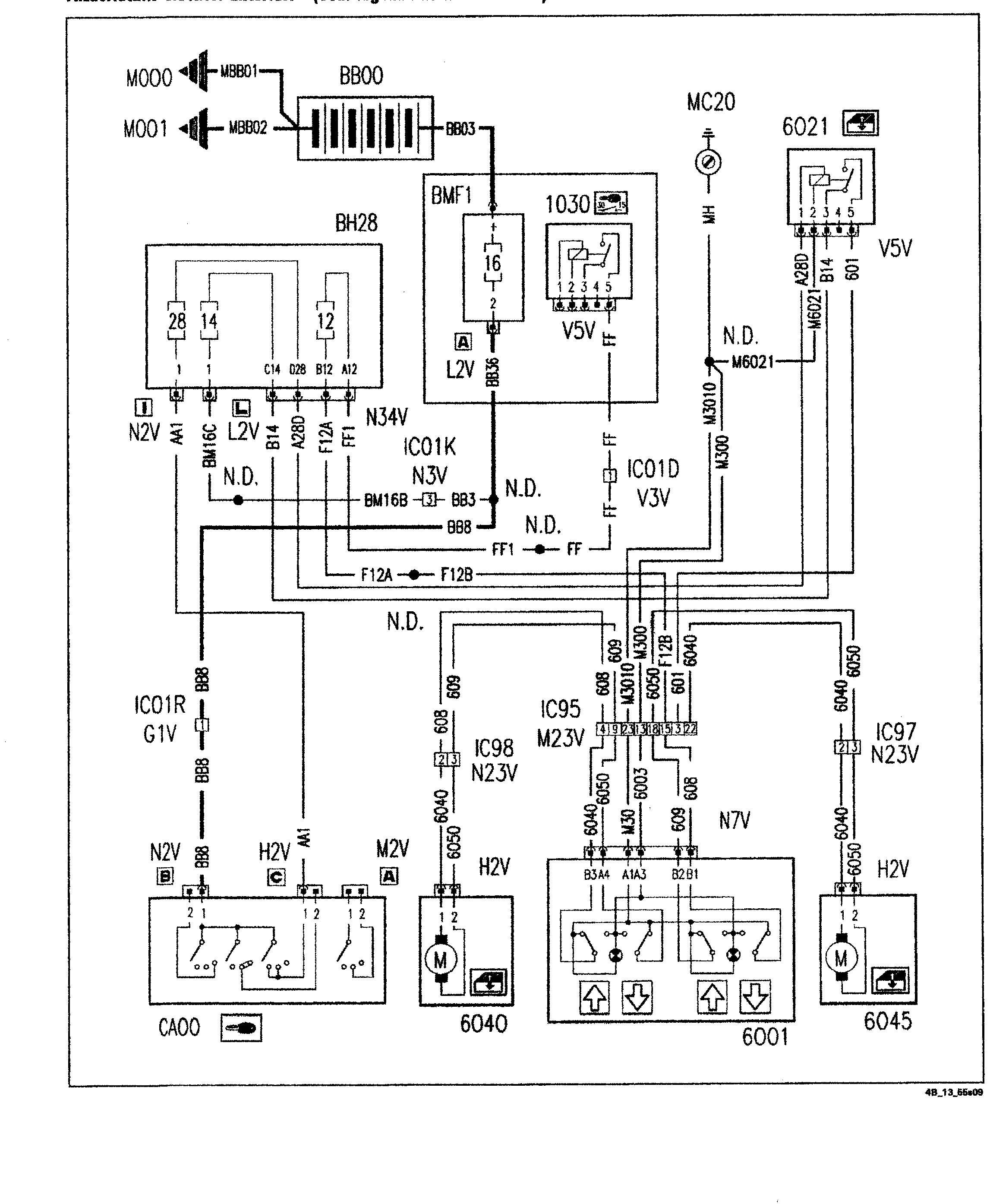

Front electric window lifters – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Front electric window lifters
