- Wiring diagrams (2003 update) › Update 2003
‹ Prev Additional engine heater deviceNext › Engine cooling with 2 electric fans (2 speeds) - Engine coolant temperature indicator and relative excessive temperature
55 Electrical equipmentUpdate 2003
Update 2003
Version with air conditioning

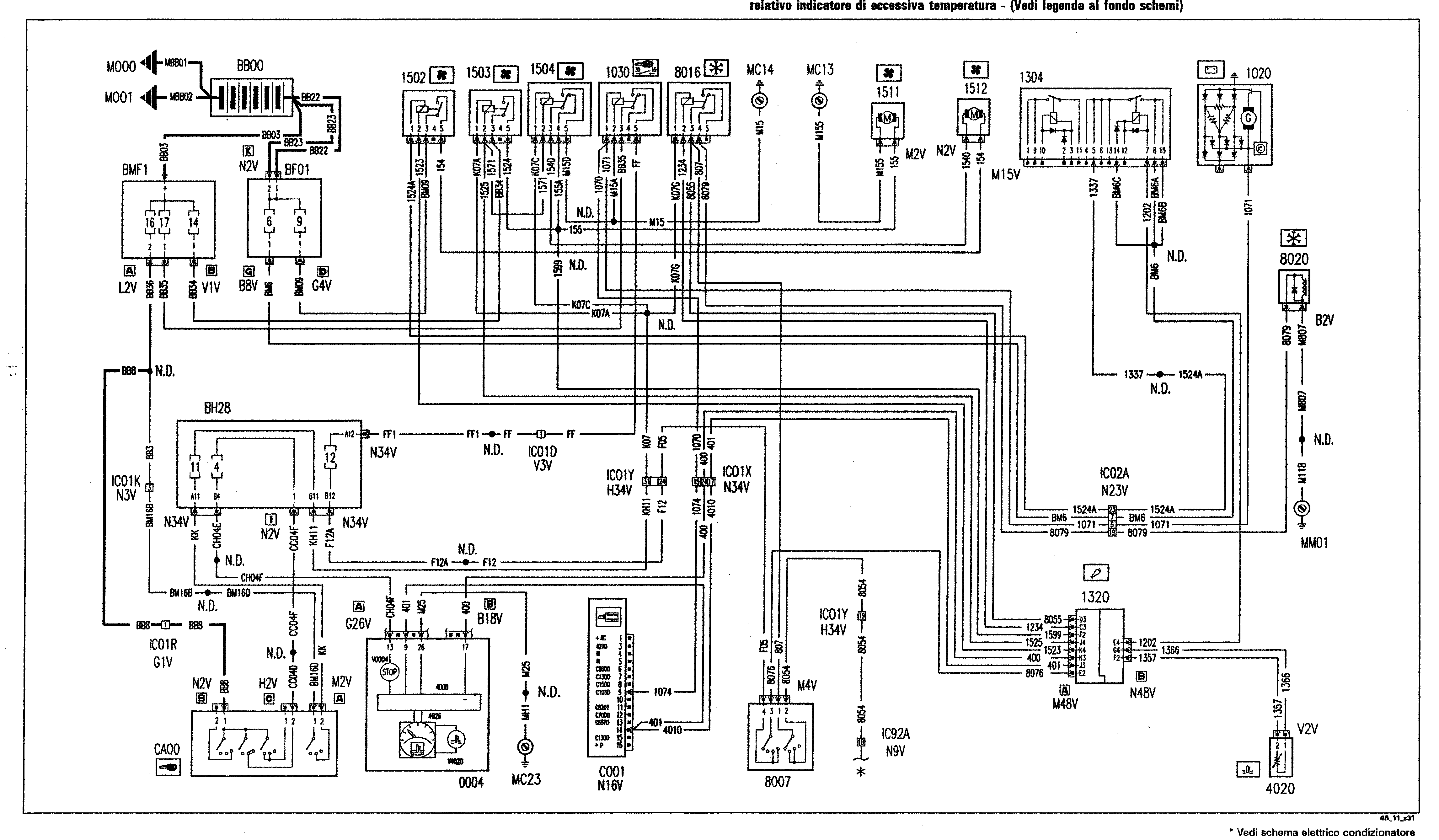

Engine cooling by 2 electric fans (2 speeds) - Engine coolant temperature indicator and related excessive temperature indicator - (See legend at the bottom of the diagrams)
* See air conditioning wiring diagram
