Air conditioner
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2003 update) › Air conditioner
55 Electrical equipmentAir conditioner

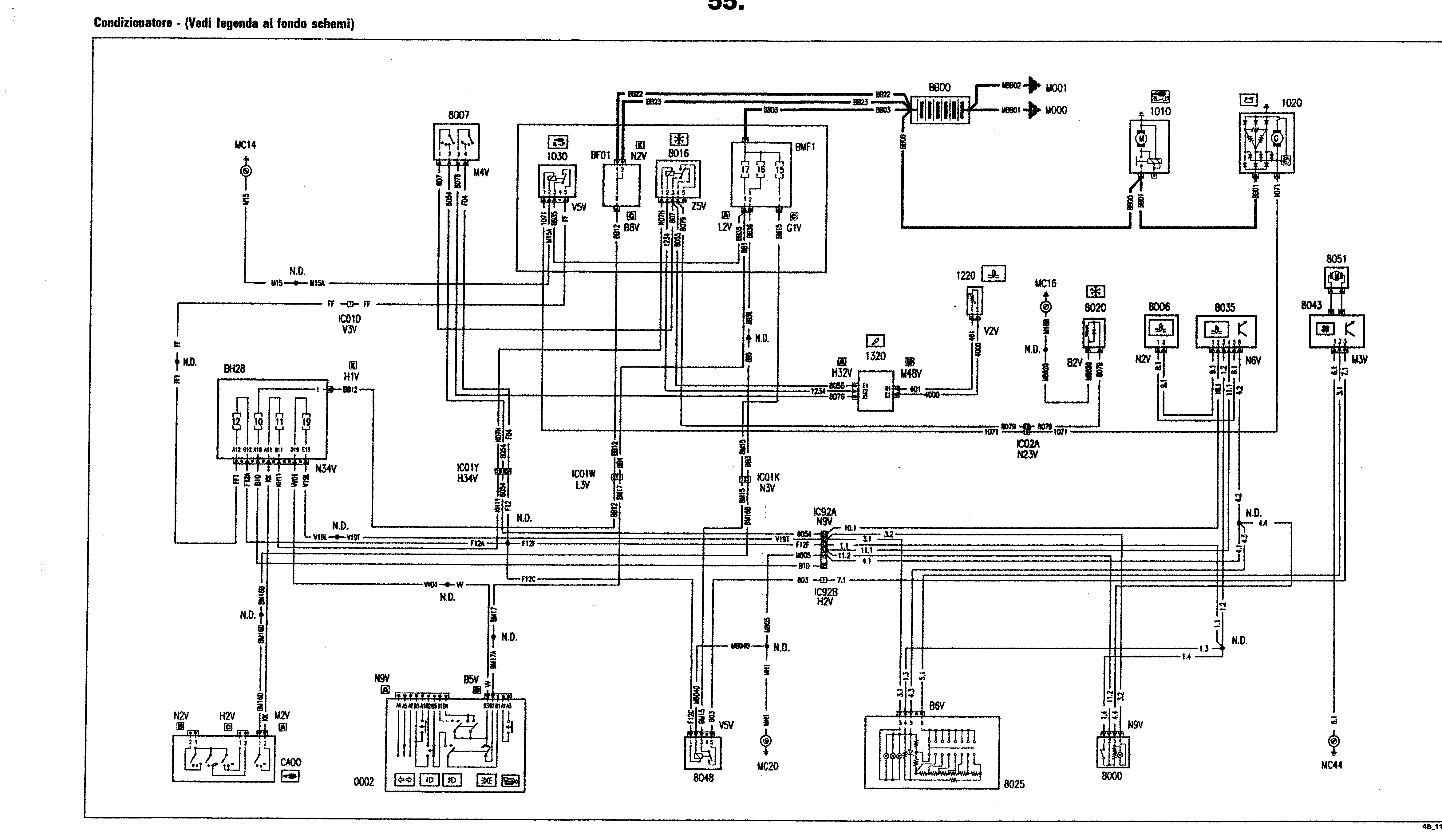

Air conditioner – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
