Position lights - Number plate lights
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2003 update) › Position lights - Number plate lights
‹ Prev Reference legendNext › Rear fog lights and related optical indicator - Front fog lights and related optical indicator
55 Electrical equipmentPosition lights - Number plate lights

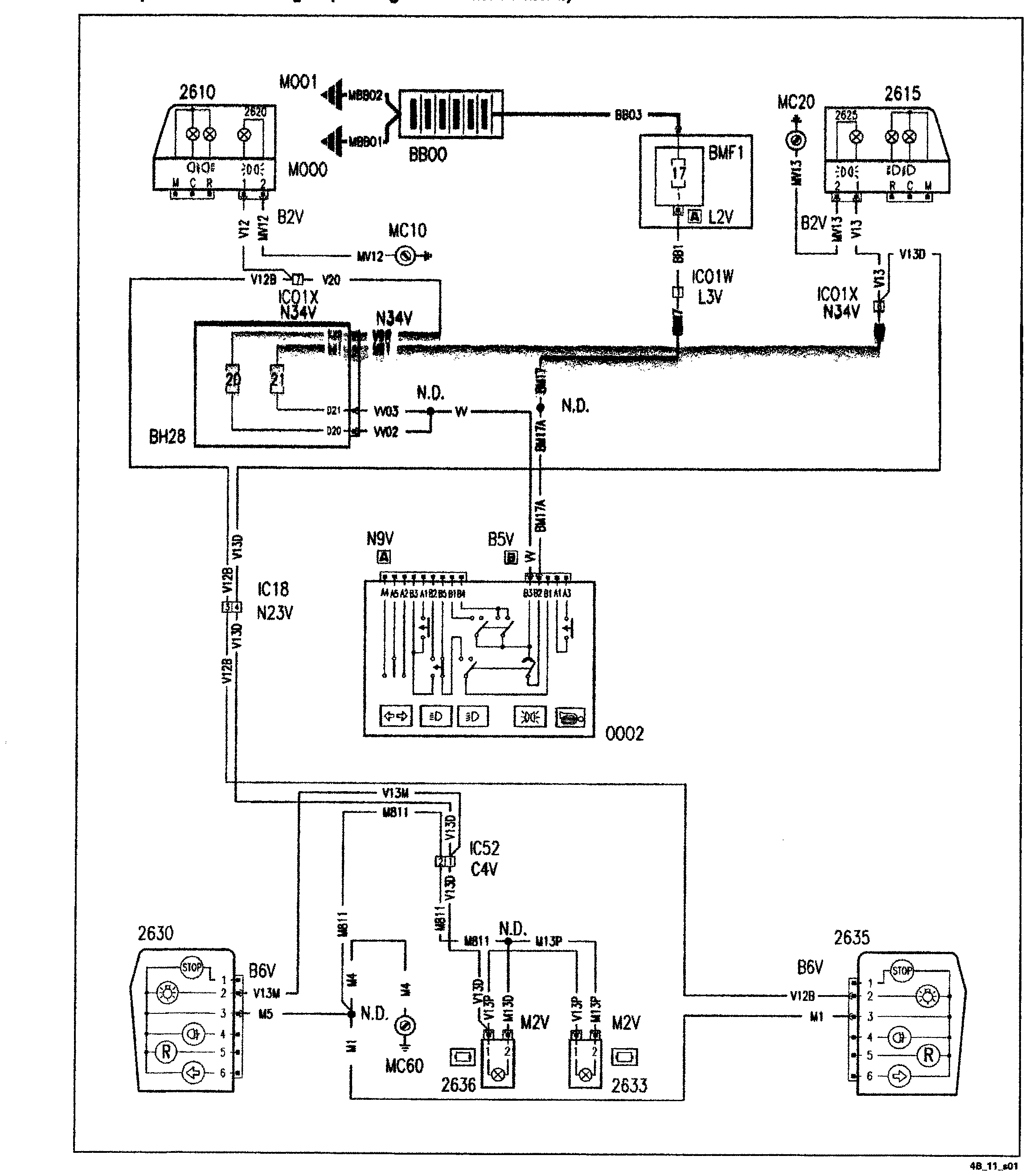

Position lights - Number plate lights – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
