55 Electrical equipmentDoor locking device

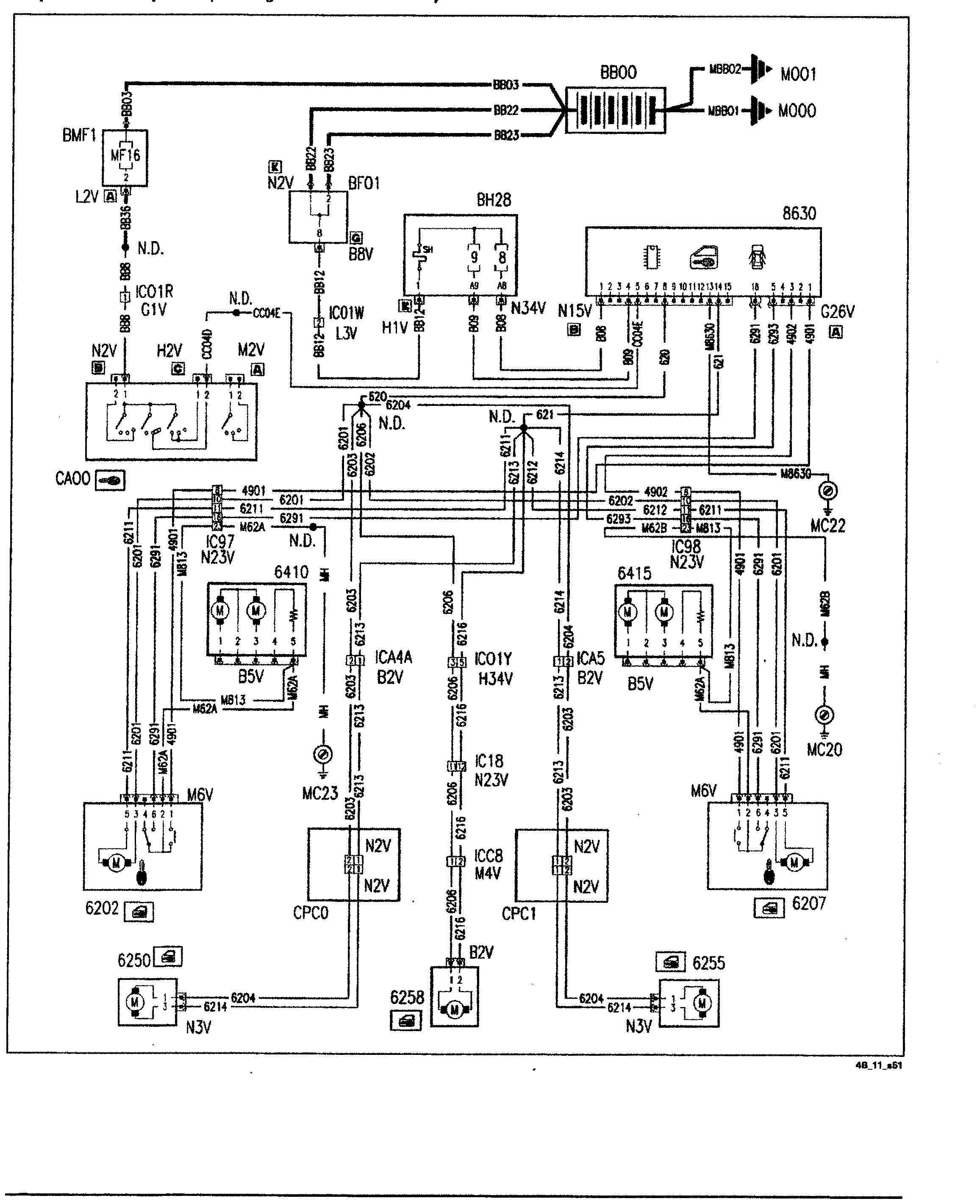

Door locking device – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Door locking device
