Instrument panel Lux version
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2003 update) › Instrument panel Lux version
‹ Prev Fuel level indicator and corresponding reserve optical indicator - Engine coolant temperature indicator and correspondinNext › Fuel level indicator and corresponding reserve optical indicator - Engine coolant temperature indicator and correspondin
55 Electrical equipmentInstrument panel Lux version

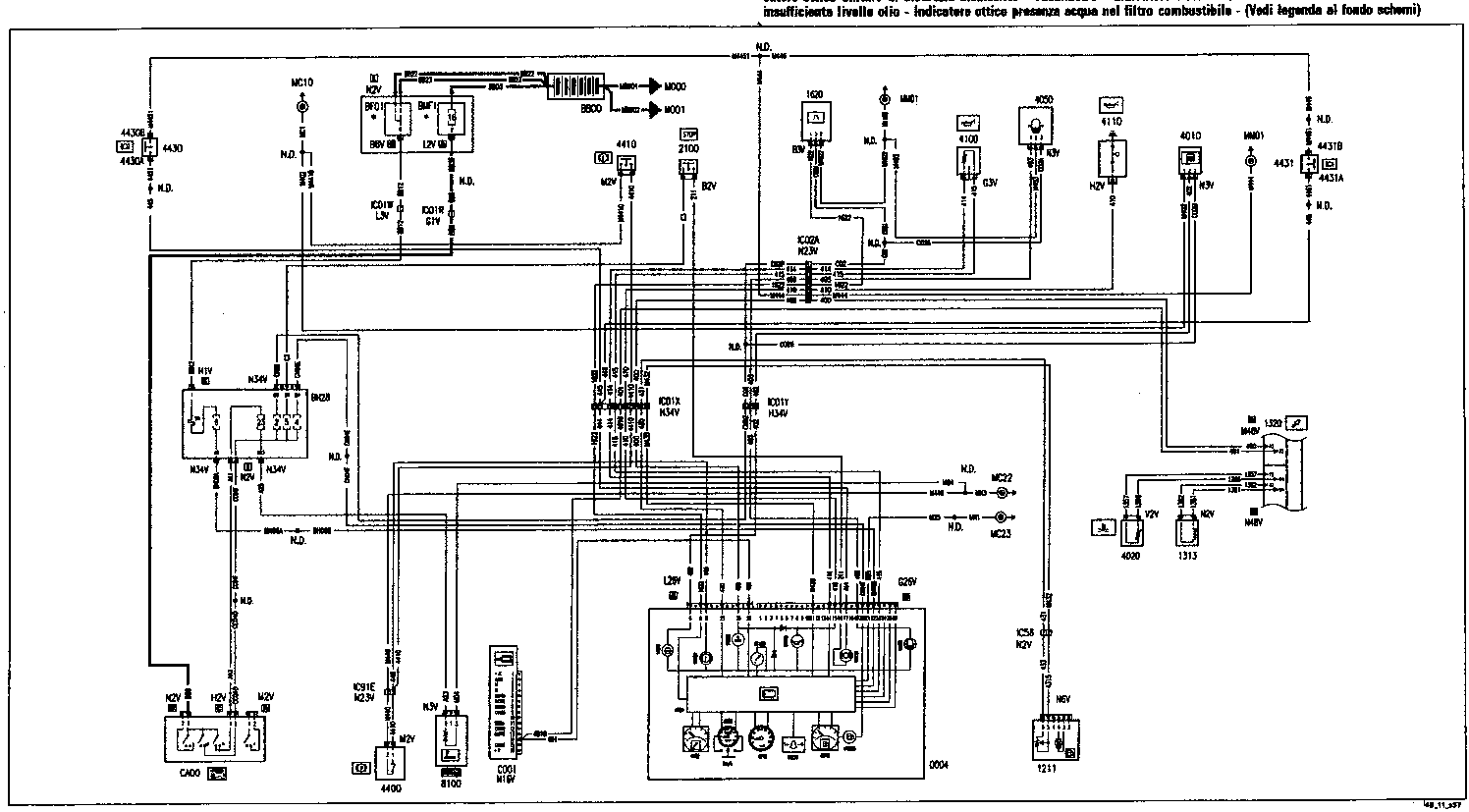

Instrument panel Lux version – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
